Tightening torques (Fabia II, Roomster)
Tightening torques (Fabia II, Roomster)

Attach the gearbox to the 3 cylinder engine without particle filter (flange fig. gearbox)
  N34-10593
Pos.ScrewPiecesNm
1M12 x 50280
21)M12 x 150180
31)M12 x 150180
41)M10 x 58140
5M10 x 50140
6M12 x 55180
72)M6 x 8110
ADowel sleeves for centering


1) Screw with threaded pin M8.
2) Attachment of cover plate for flywheel.


Attach the gearbox to the 3 cylinder engine with particle filter (flange fig. gearbox)
  S34-1063
Pos.ScrewPiecesNm
1M12 x 50180
21)M12 x 55180
31)M12 x 150280
41)M10 x 50140
5M10 x 50140
6M12 x 60180
72)M6 x 8110
ADowel sleeves for centering


1) Screw with threaded pin M8.
2) Attachment of cover plate for flywheel.

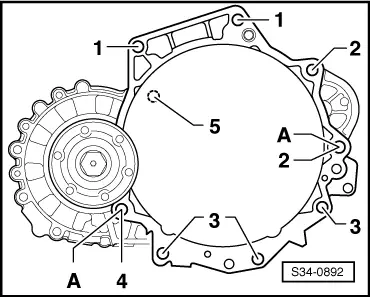

Attach the gearbox to the 4 cylinder engine without particle filter (flange fig. gearbox)
  S34-0892
Pos.ScrewPiecesNm
1M12 x 50280
21)M12 x 150280
3M10 x 50340
4M12 x 55180
52)M6 x 8110
ADowel sleeves for centering


1) Screw with threaded pin M8.
2) Attachment of cover plate for flywheel.


Attach the gearbox to the 4 cylinder engine with particle filter (flange fig. gearbox)
  S34-1062
Pos.ScrewPiecesNm
1M12 x 50180
21)M12 x 55180
31)M12 x 150280
41)M10 x 50140
5M10 x 50240
6M12 x 60180
72)M6 x 8110
ADowel sleeves for centering


1) Screw with threaded pin M8.
2) Attachment of cover plate for flywheel.


Attach the gearbox to the 3 cylinder engine (1.2 ltr./55 kW TDI CR) with particle filter (flange fig. gearbox)
  N34-1854
Pos.ScrewPiecesNm
1M12 x 50280
21)M12 x 150280
3M10 x 50340
4M12 x 60180
52)M6 x 8110
ADowel sleeves for centering


1) Screw with threaded pin M8.
2) Attachment of cover plate for flywheel.


Pendulum support
  Note
Position the screws -1- in the elongated holes of the pendulum support in such a way that there is maximum distance between the gearbox and the assembly carrier.
  S10-0133
ComponentsTightening torque
Gearbox console to gearbox1)40 Nm + 90°
Fixing screws to gearbox mount1)40 Nm + 90°
Cable support to gearbox → Chapter
Gearbox shift lever to gearbox → Chapter
Slave cylinder to gearbox → Chapter
bracket for tube-hose line → Chapter
Fixing screws of engine mount → Engine; Rep. gr.10
Pendulum support → Engine; Rep. gr.10
Pre-exhaust pipe with catalytic converter and clamping sleeve → Engine; Rep. gr.26
Drive shaft to flange shaft → Chassis; Rep. gr.40
Coupling rod to anti-roll bar → Chassis; Rep. gr.40
Heat shield for drive shaft to engine → Chassis; Rep. gr.40
Steering joint to track control arm → Chassis; Rep. gr.40
Wheel bolts → Chassis; Rep. gr.44

1) Always replace these bolts.
