Setting multi-function switchF125
Setting multi-function switch -F125-
Special tools and workshop equipment required
t  Setting gauge -T10173-
–  Shift selector lever to position „N“.
–  Switch off ignition.
–  Remove air filter → Engine; Rep. gr.24.

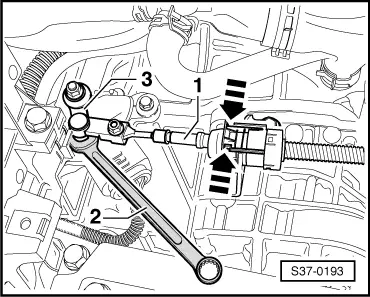

–  Lever off the selector lever control cable -1- from the gearshift lever -3-, e.g using an open-end wrench -2-, while ensuring that the selector lever control cable does not get kinked.
  S37-0193

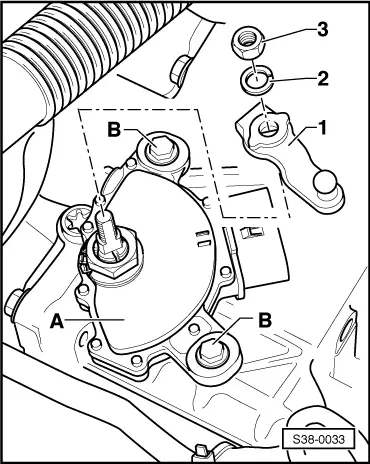

–  Remove gearshift lever -1-.
–  Loosen both screws -B-.
  Note
Do not release the screws.
  S38-0033
–  Fit the setting gauge -T10173- onto the gearshift shaft.
  S38-0035

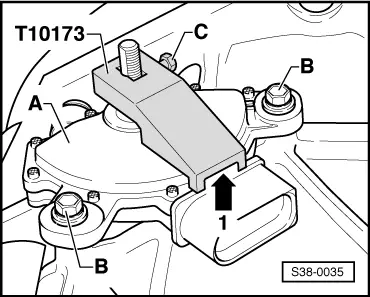

–  Turn the multi-function switch -A- until the peg of the plug -arrow 1- engages in the groove of the setting gauge -T10173-.
If the peg of the plug cannot engage into the groove of the setting gauge, then the gearbox is no longer in the position „N“. In this case, the gearbox must be shifted again with the setting gauge into the position „N“:
To do so turn the setting gauge to the front or to the rear, until the peg of the plug -arrow 1- can engage into the groove of the setting gauge -T10173- (if necessary slightly turn the multi-function switch -A-).
–  Fix the setting gauge -T10173 - to the gearshift shaft using a knurled screw -C-
–  Tighten both screws -B- to tightening torque 6 Nm.
–  Remove setting gauge from gearshift shaft.
Further installation occurs in reverse order.
–  Inspect setting of selector lever control cable → Chapter.
