Removing and installing the rear door trim panel
Removing and installing the rear door trim panel
Removing

–  Insert a screwdriver (5 mm wide max.) in the opening in the bottom of the door handle and lever off cover -1-.
  Note
To avoid damaging the door trim panel, place a plastic spatula -2- between the screwdriver and the trim panel.
  N70-0435
–  Remove bolts -1- and -2-.
  Note
The door handle -3- is attached with screws through the door trim panel, and can only be screwed off together with the trim panel.
  N70-0350

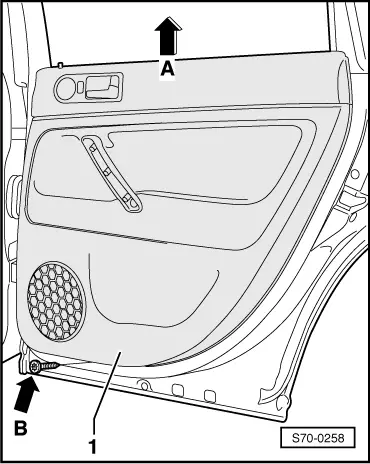

–  Remove screw -arrow B-.
–  Unclip trim panel -1- from door (using a plastic spatula for example), and pulling in -direction of arrow A-.
–  Separate plug connection from front treble speaker.
  S70-0258

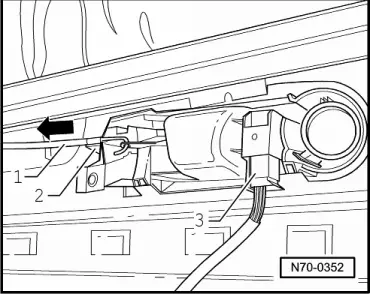

–  Unhook control cable -1- and pull in -direction of arrow- out of guide -2-.
–  Disconnect plug connection -3-.
–  Detach connector from bottom light.
Install
Installation is carried out in the reverse order.
  N70-0352
