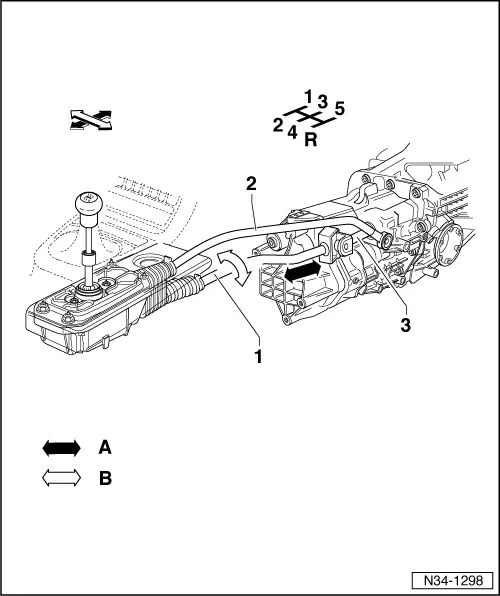

Fitting location of shift mechanism

Fitting location of shift mechanism
Arrow -A- Shift movement
Arrow -B- Selector movement
1 - Gear shift rod
2 - Front push rod
3 - Gearbox shift shaft


  Note
Grease bearing and friction surfaces with Polycarbamide Grease -G 052 142 A2-.

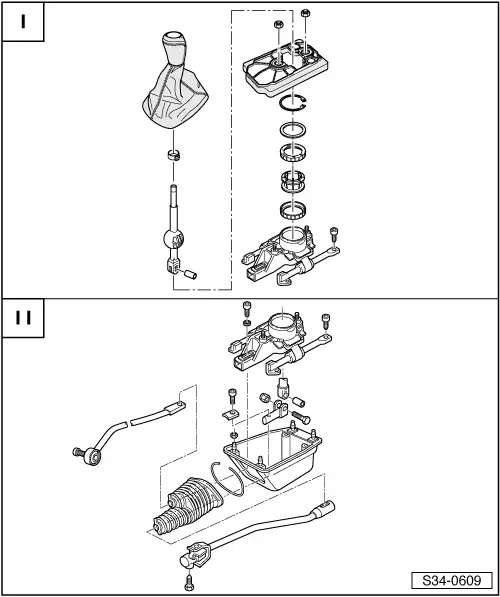

I - Repairing gear shift lever and rear push rod → Chapter
II - Repairing the shift rod and front push rod → Chapter
Removing and installing shift lever and rear push rod → Chapter
Removing and installing shift mechanism → Chapter
Setting the shift mechanism → Chapter
