Power transmissionInspecting gear oil
Note | t
| The vehicle must be standing on level ground for inspecting gear oil level. |
| t
| The prescribed oil level should be observed, the gearbox reacts very sensitive to over-filling. |
| Gear oil level is checked with the gearbox installed. |
|
|
|
| –

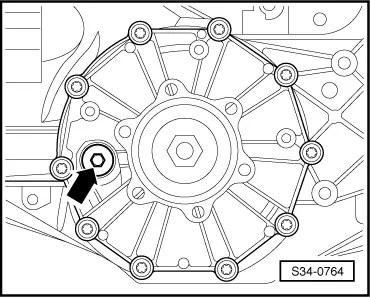

| Unscrew oil filler plug -arrow- for inspecting gear oil. |
| –
| Inspect oil level with self-made auxiliary tool, e.g angled wire. |
| The oil is at the correct level if the gear is filled up to 2 mm below the lower edge of the oil filler hole. |
| –
| Tighten oil drain plug -arrow-. |
| If re-filling, do the following: |
| –
| Unscrew oil filler plug -arrow- for inspecting gear oil. |
| –
| Pour in gear oil again up to 2 mm below the lower edge of the oil filler hole. |
| –
| Screw in oil drain plug -arrow-. |
| –
| Start engine, engage a gear and allow gearbox to rotate for about 2 minutes. |
| –
| Switch off engine and unscrew oil drain plug -arrow-. |
| Pour in gear oil again up to 2 mm below the lower edge of the oil filler hole. |
| –
| Tighten oil drain plug -arrow-. |
|
|
|
| Component | Nm |
| Oil drain plug to gearbox | 40 |
