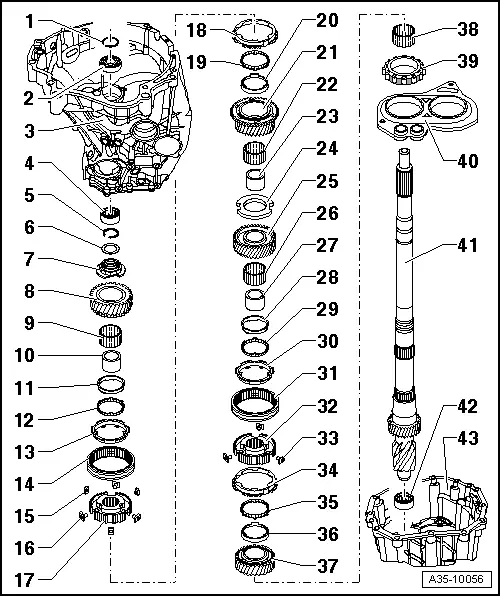

Drive shaft - Summary of components

Drive shaft - Summary of components
Disassembling and assembling the drive shaft - Mounting sequence → Chapter
  Note
t  When installing new pinions observe the technical data → Chapter.
t  When replacing the synchronizer rings, the inner ring, the intermediate ring and the synchronizer ring must be replaced together for the respective gear.
t  If synchronizer rings are not replaced, make sure that they are assigned again to the original gear.
t  Insert all bearings and synchronizer rings onto the drive shaft with gear oil.
t  The twelve-point nut Pos. 7 has a left thread, turn this nut clockwise for loosening.
t  On gearboxes with spring-loaded shift forks → Fig., the positions 8, 11 to 14, 18 to 21, 25, 28 to 31 and 34 to 37 were changed. Assign components via → Electronic Catalogue of Original Parts.
1 - Circlip
2 - Grooved ball bearing
q   replacing on removed gearbox (not disassembled) → Chapter
q   replace with gearbox disassembled → Chapter
3 - Gearbox housing
4 - Needle bushing
q   removing and installing → Chapter
5 - Circlip
q   Determining thickness again → Anchor
6 - Washer
q   Determining thickness again → Anchor
7 - Twelve-point nut - 75 Nm
q   on certain gearboxes the tightening torque ist higher → Anchor
q   has a left thread
8 - 4th gear sliding gear
9 - Needle bearing
q   for 4th gear
10 - Inner ring/needle bearing
q   for 4th gear sliding gear
11 - Inner ring for 4th gear
q   Fitting position → Fig.
q   replace if there are any traces of scoring or of friction
12 - Intermediate ring for 4th gear
q   Fitting position → Fig.
q   check for wear → Fig.
13 - 4th gear synchronizer ring
q   Fitting position → Fig.
q   check for wear → Fig.
q   replace if there are any traces of scoring or of friction
14 - Sliding sleeve for 3rd and 4th gear
q   Assembling sliding sleeve/synchronizer body → Fig.
15 - Arrester
q   Fitting position: insert with the curved side into the sliding sleeve → Fig.
q   Install arresters (3 pieces) → Fig.
16 - Pressure plate
q   Install pressure plates (3 pieces) → Fig.
17 - Synchronizer body for 3rd and 4th gear
q   pressing off → Anchor
q   pressing on → Fig.
q   Assembling sliding sleeve/synchronizer body → Fig.
18 - 3rd gear synchronizer ring
q   Fitting position → Fig.
q   check for wear → Fig.
q   replace if there are any traces of scoring or of friction
19 - Intermediate ring for 3rd gear
q   Fitting position → Fig.
q   check for wear → Fig.
20 - Inner ring for 3rd gear
q   Fitting position → Fig.
q   replace if there are any traces of scoring or of friction
21 - 3rd gear sliding gear
22 - Needle bearing
q   for 3rd gear
23 - Inner ring/needle bearing
q   for 3rd gear sliding gear
24 - Thrust washer
q   for 3rd and 6th gear sliding gears
25 - 6th gear sliding gear
26 - Needle bearing
q   for 6th gear
27 - Inner ring/needle bearing
q   for 6th gear sliding gear
28 - Inner ring for 6th gear
q   Fitting position → Fig.
q   replace if there are any traces of scoring or of friction
29 - Intermediate ring for 6th gear
q   Fitting position → Fig.
q   check for wear → Fig.
30 - 6th gear synchronizer ring
q   Fitting position → Fig.
q   check for wear → Fig.
q   replace if there are any traces of scoring or of friction
31 - Sliding sleeve for 5th and 6th gear
q   Assembling sliding sleeve/synchronizer body → Fig.
32 - Synchronizer body for 5th and 6th gear
q   Fitting position: high collar points inwards to the 5th gear sliding gear
q   pressing off → Anchor
q   pressing on → Fig.
q   Assembling sliding sleeve/synchronizer body → Fig.
33 - Pressure plate
q   Install pressure plates (3 pieces) → Fig.
34 - 5th gear synchronizer ring
q   Fitting position → Fig.
q   check for wear → Fig.
q   replace if there are any traces of scoring or of friction
35 - Intermediate ring for 5th gear
q   Fitting position → Fig.
q   check for wear → Fig.
36 - Inner ring for 5th gear
q   Fitting position → Fig.
q   replace if there are any traces of scoring or of friction
37 - 5th gear sliding gear
38 - Needle bearing
q   for 5th gear
39 - Roller bearing
q   for drive shaft
q   do not interchange with roller bearing for secondary shaft
q   pressing off → Anchor
q   pressing on → Anchor
40 - Bearing carrier
q   the outer ring for the roller bearing Pos. 39 cannot be replaced individually, in case of wear replace bearing carrier
q   the outer ring for the roller bearing must have no radial play in the bearing carrier
41 - Drive shaft
q   Difference between drive shafts → Fig.
q   Change: with additional “PTFE - washer” for 5th gear needle bearing → Fig., assign components via → Electronic Catalogue of Original Parts
42 - Roller sleeve
q   for bearing of drive shaft in gearbox cover
q   always replace → Electronic Catalogue of Original Parts
q   removing and installing → Chapter
43 - Gearbox cover


Difference between drive shafts
On a drive shaft without “PTFE - washer”, the dimension x = 31 mm
On a drive shaft with “PTFE - washer”-A-, the dimension x = 29 mm
  Note
After installing the needle bearing for 5th gear, push the “PTFE - washer”-A- up to the stop onto the drive shaft -arrow-.
  A35-10084
