Removing and installing middle vent temperature sender for Yeti HVAC

Removing and installing the middle vent temperature senderG191
Removing and installing the middle vent temperature sender -G191 -
  Note
Is not mounted as of CW 46.2010.
Removing
–  Remove the vent on the driver's side → Chapter.

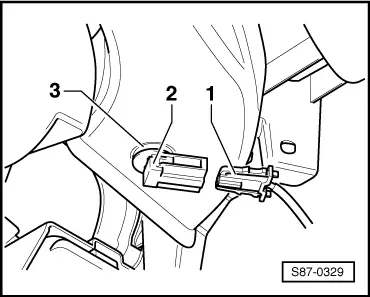

–  Rotate sender -2- by 90° and take out.
–  Disconnect plug connection -1-.
Install
Installation is performed in the reverse order, pay attention to the following points:
When installing, pay attention to the correct seating of the gasket ring -3-.
  S87-0329
