Tightening torques

Attachment of engine/gearbox

Pos.	Screw	Nm
1, 2	M12 x 55	80
31)	M10 x 45	40
42)	M12 x 55	80
51)	M10 x 40	40
6	M12 x 65	80
7,8,9	M10 x 50	40
103)	M12 x 70	80
A	Dowel sleeves

1) Starter to gearbox.

2) The screw is only accessible after removing the starter.

3) Installed from the engine side.

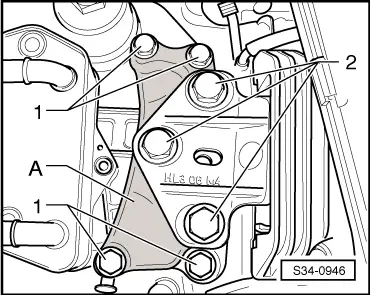

Install gearbox mount -A- When installing the gearbox holder, observe the following mounting sequence: –  Screw in all screws by hand. –  Tighten screws -arrows 1- to 40 Nm. –  Tighten screws -arrow 2- and -arrow 3- (behind right flange shaft -B-) to 40 Nm. Gearbox console -A- to gearbox and gearbox mount to gearbox console

t  Screw -1- tightening torque 40 Nm + torque a further 90° (1/4 turn) t  Screw -2- tightening torque 60 Nm + torque a further 90° (1/4 turn) Always replace screws -1- and -2- → Electronic Catalogue of Original Parts.

Component	Tightening torque
Heat shield of drive shaft to angle gearbox	20 Nm
Earth strap to fixing screw for gearbox console	20 Nm
