Yeti

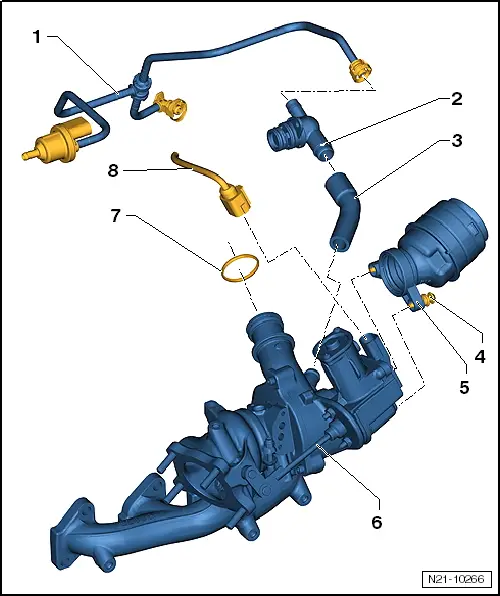

| Part I |
| 1 - | Solenoid valve 1 for activated charcoal filter -N80- |
| q | To intake manifold |
| 2 - | Non-return valve |
| q | Fitting location: cylinder head cover |
| 3 - | Connecting hose |
| 4 - | 8 Nm |
| 5 - | Inlet connection |
| 6 - | Exhaust turbocharger with exhaust manifold |
| q | with charge pressure regulator -V465 - |
Note| The exhaust turbocharger can only be replaced complete with exhaust manifold and charge pressure regulator -V465-. |
| q | removing and installing → Chapter |
| 7 - | O-ring |
| q | replace |
| 8 - | Connector |
