Yeti

Removing
Removing
l  Gearbox is removed.
–  Remove the two-mass flywheel → Chapter.

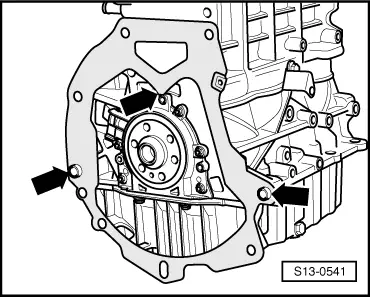

–  Remove the intermediate plate from the dowel sleeves and unhook from sealing flange -arrows-.
–  Position crankshaft to TDC for cylinder 1 → Chapter.
–  Removing the oil pan → Chapter.
  S13-0541

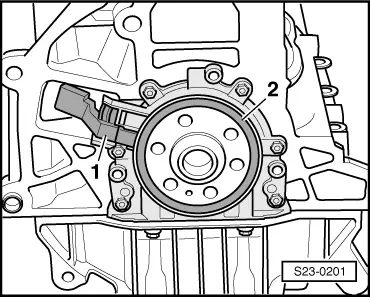

–  Remove engine speed sender -G28--1-.
–  Unscrew the fixing screws of the sealing flange.
  S23-0201

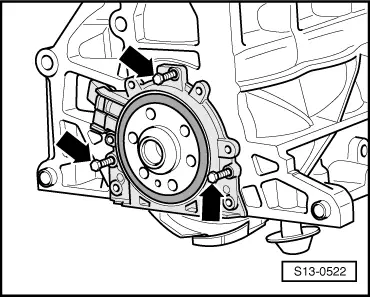

–  Screw 3 press-off screws M6 x 35 mm into the threaded bores of the sealing flange -arrows-.
–  Remove the sealing flange together with rotor from the crankshaft by alternately screwing in the press-off screws.
  S13-0522
