Vehicle electricsAC generator
Removing and installing the Valeo voltage regulator

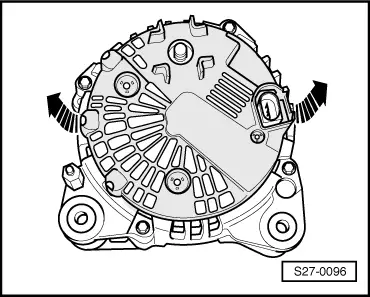

–  Press off screen cap on the rear side of the generator -arrows-.
  S27-0096

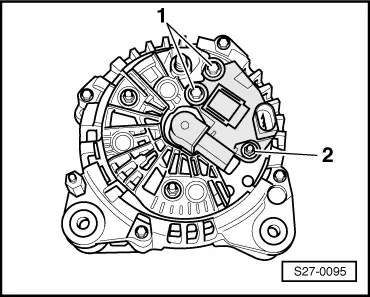

–  Release screws -1- and nut -2-.
–  Remove voltage regulator.
–  Installation is carried out in the reverse order.
  S27-0095
