Timing Component Alignment Marks: Locations

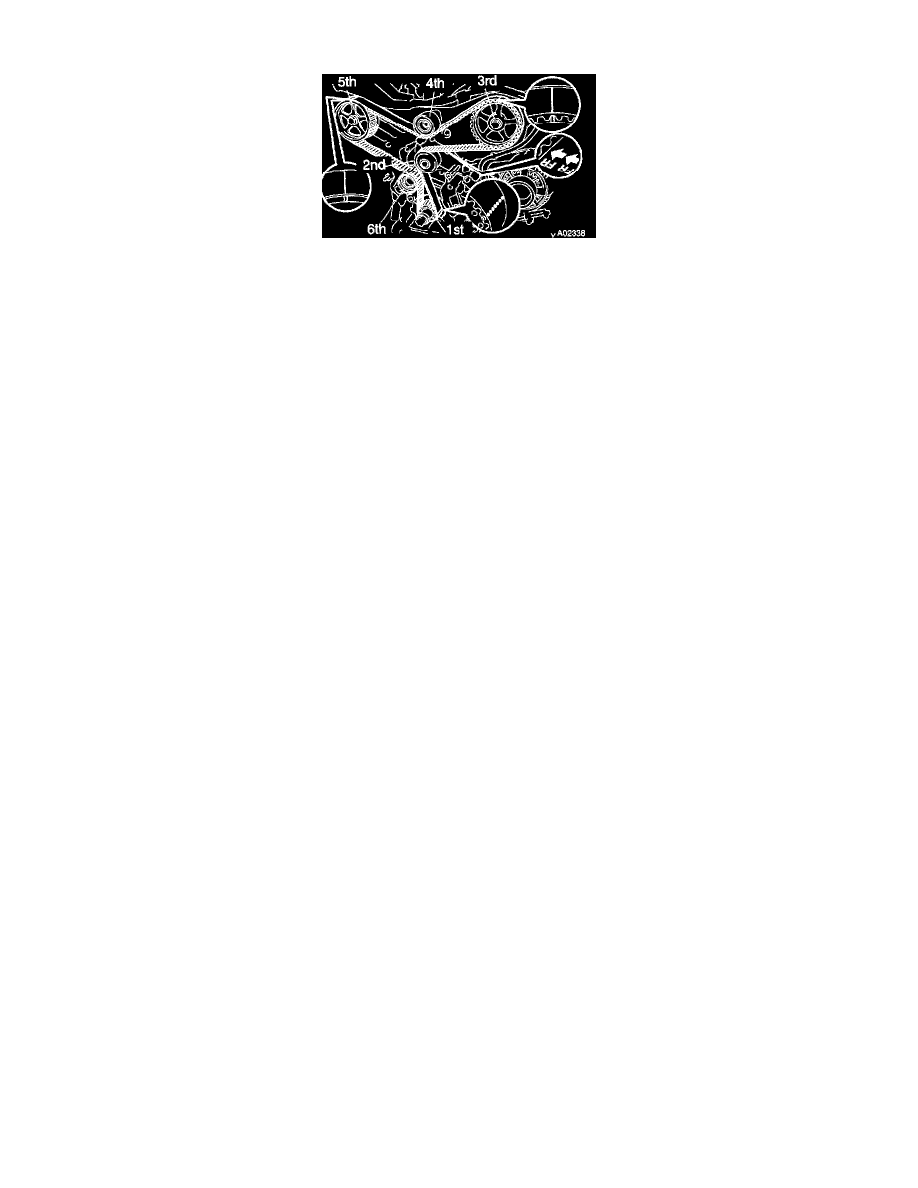

Install the timing belt in this order:

1st: Crankshaft timing pulley
2nd: Water pump pulley
3rd: LH camshaft timing pulley
4th: NO. 2 idler pulley
5th: RH camshaft timing pulley
6th: NO. 1 idler pulley

CAUTION:  Incorrect removal or installation of the timing belt can result in damage to internal engine components.

For complete Timing Belt Removal and Installation information, please refer to Timing Belt; Service and Repair.  See: Timing Belt/Service and
Repair
