General Vehicle InformationExplanation of Pictographs
|
Explanation of Pictographs
The Service Instructions use pictographs to illustrate the
various work steps easily and clearly.

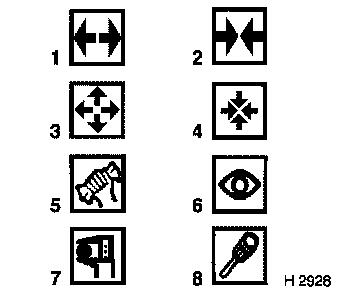

Pictographs and their meaning:
|
1
|
Remove, detach
|
| |
Any form of disassembly carried out on the vehicle (unscrewing,
driving out, etc.).
|
|
2
|
Install, attach
|
| |
Any form of installation carried out on the vehicle (screwing
on, fitting, etc.).
|
|
3
|
Dismantle
|
| |
Dismantling of component for cleaning, checking, etc.
|
|
4
|
Assemble
|
| |
Assembling a component after the function check has been
completed.
|
|
5
|
Clean
|
| |
To guarantee operation or reduce wear (bearing surface, sealing
surface, etc.).
|
|
6
|
Check/visual check
|
| |
Checking of components for function and wear. Checking fluid
level and correcting if necessary.
|
|
7
|
Measure
|
| |
Subsequent measuring of components, temperature, pressure, etc.,
to see if the given recommended values are being adhered to.
|
|
8
|
Adjust
|
| |
All adjusting operations, observing the recommended values.
|
|
|

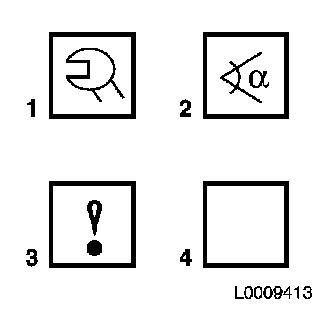

The following pictographs were used in the Service
Instructions up to MY 2001 only:
|
1
|
Torque
|
| |
Tighten bolts or nuts to specified torque.
|
|
2
|
Torque/angle tightness
|
| |
Tighten bolts or nuts to specified torque and turn further by
angle.
|
|
3
|
Caution
|
| |
Safety information or important explanation.
|
|
4
|
Process
|
| |
Processing of components and units.
|
|
|
|
|
01 General
