Vauxhall Astra G08 · Brakes
08 · Brakes

Brakes - illustration of brake system

Make
Vauxhall
Model
Astra G
Section
Component Locator › Brakes - illustration of brake system
BrakesBrakes - illustration of brake system

Brakes - illustration of brake system

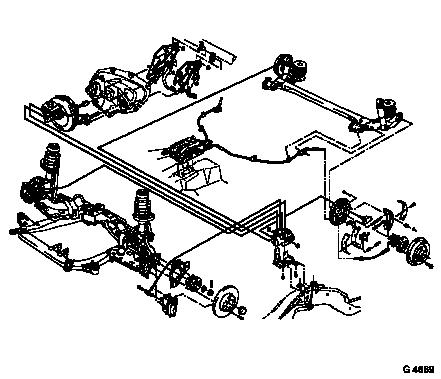

Note:   The illustration shows the brake system for vehicles fitted with ABS and drum brakes.

 Object Number: 2398533 Size: DEFAULT

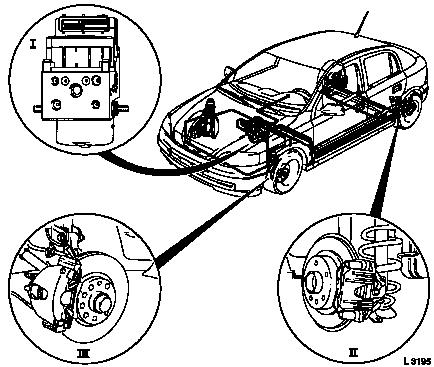

Note:   The following illustrations show the location of different components for vehicles with left-hand drive. For vehicles with right-hand drive, the brake servo and brake master cylinder are on the right-hand side.

  1. Hydraulic modulator
  2. Rear Wheel Brakes
  3. Front Wheel Brake
 Object Number: 2416124 Size: DEFAULT

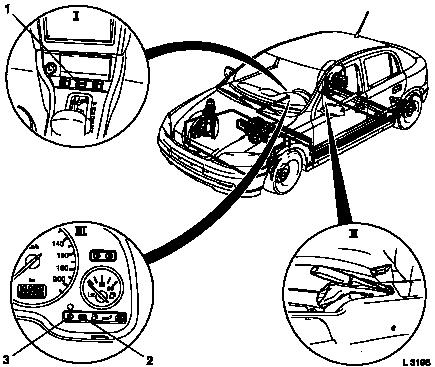

  1. TC switch location
  2. Parking brake lever
  3. Telltales
1. TC switch
2. ABS telltale
3. TC telltale

Object Number: 2416125 Size: DEFAULT

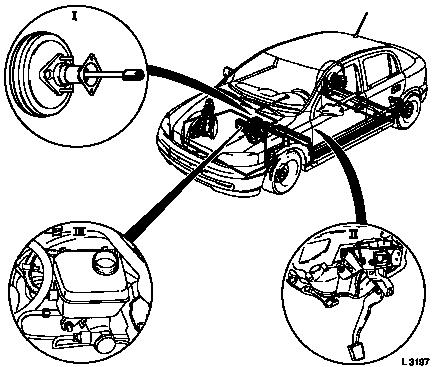

  1. Brake Servo
  2. Brake pedal
  3. Brake master cylinder with brake fluid reservoir
 Object Number: 2416126 Size: DEFAULT
