Engine and Engine AggregatesSpecial Service Tools
|
Special Service Tools
|

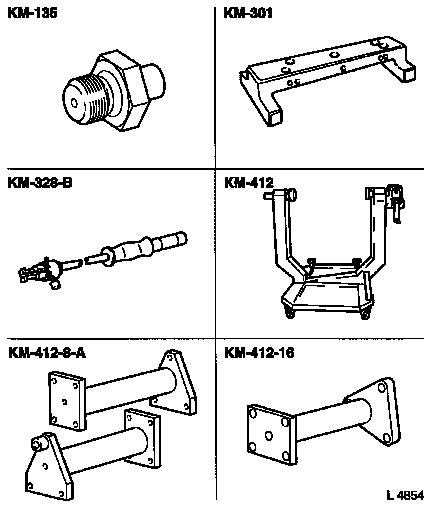

KM-135
|
Adapter
|
|
To measure engine oil pressure in conjunction with KM-498-B
|
|
KM-301
|
Gauge Bar
|
|
To measure valve and piston projection
|
|
KM-328-B
|
Remover
|
|
To remove injection nozzles from cylinder head in conjunction
with KM-931
|
|
KM-412
|
Engine Overhaul Stand
|
|
To hold the removed engine
|
|
KM-412-8-A
|
Adapter
|
|
To receive engine in conjunction with KM-412-16 and KM-412
|
|
KM-412-16
|
Adapter
|
|
Engine mount in conjunction with KM-412-8-A and KM-412
|
|
|
|

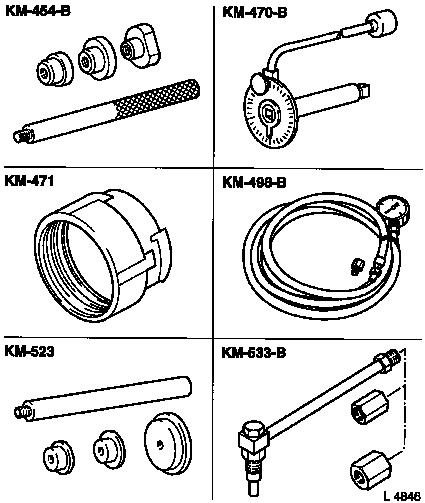

KM-454-B
|
Remover/Installer
|
|
To install crankshaft seal ring in conjunction with KM-934
|
|
KM-470-B
|
Angular Torque Wrench
|
|
To tighten cylinder head bolts
|
|
KM-471
|
Adapter
|
|
To check pressurised cooling system in conjunction with cooling
system tester
|
|
KM-498-B
|
Oil Pressure Manometer
|
|
To check engine oil pressure in conjunction with KM-135
|
|
KM-523
|
Remover/Installer
|
|
To install crankshaft seal ring in conjunction with KM-934
|
|
KM-533-B
|
Connecting Piece
|
|
To check compression pressure and pressure loss in conjunction
with KM-928
|
|
|
|

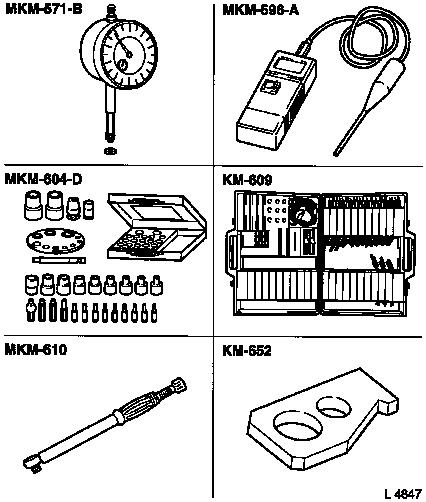

MKM-571-B
|
Dial Gauge
|
|
To check various components
|
|
MKM-596-A
|
Temperature Gauge
|
|
To measure oil temperature
|
|
MKM-604-D
|
Torx Bit and Socket Set
|
|
To remove/install Torx bolts
|
|
KM-609
|
Electronic Kit I
|
|
To diagnose electrical and electronic systems
|
|
MKM-610
|
Torque Wrench 1/2'' drive
|
|
Range 30 – 130 Nm / 22 – 96 lbf. ft.
|
|
KM-652
|
Flywheel Locking Device
|
|
To lock flywheel or drive disc
|
|
|
|

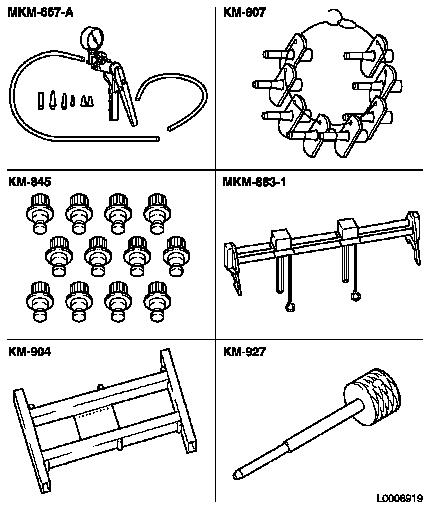

MKM-667-A
|
Pressure and Vacuum Pump
|
|
To check for leaks in vacuum unit
|
|
KM-807
|
Closure Plug
|
|
For sealing the fuel lines
|
|
KM-845
|
Suction Device
|
|
To remove the hydraulic valve lifters
|
|
MKM-883-1
|
Engine Bridge
|
|
To hold/lift the engine
|
|
KM-904
|
Base Frame
|
|
To remove and install various vehicle components with additional
adapters
|
|
KM-927
|
Positioning Pin
|
|
To lock injection pump in TDC position
|
|
|
|

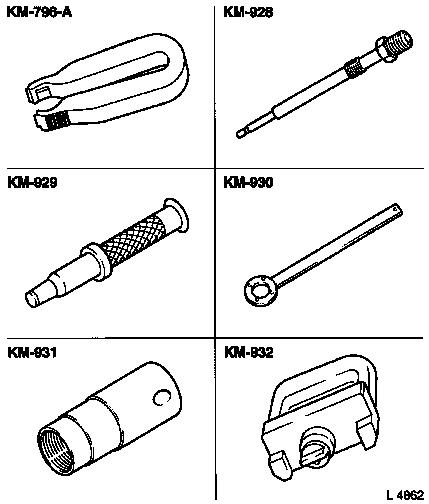

KM-796-A
|
Dismantler
|
|
To open fuel line quick-release fittings
|
|
KM-928
|
Connecting Piece
|
|
To check compression pressure in conjunction with KM-533-B
|
|
KM-929
|
Positioning Pin
|
|
To lock crankshaft in 1st cylinder TDC position
|
|
KM-930
|
Holding Wrench
|
|
To keep the torsional vibration damper fixed when removing or
installing the fastening bolt
|
|
KM-931
|
Remover
|
|
To remove injection nozzle in conjunction with KM-328-B
|
|
KM-932
|
Locking Tool
|
|
To lock camshaft in 1st cylinder TDC position
|
|
|
|

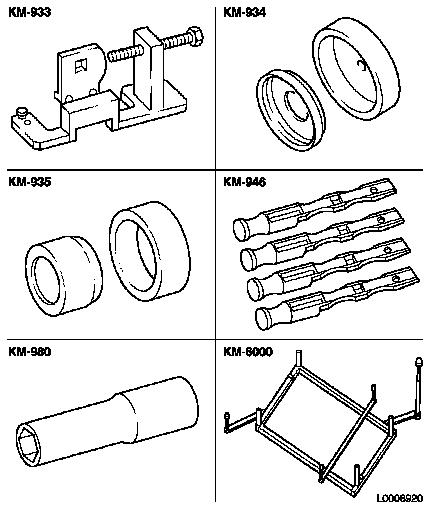

KM-933
|
Adjuster
|
|
Simplex chain /installation of sprocket
|
|
KM-934
|
Installer
|
|
To install crankshaft rear seal ring with KM-523-1
|
|
KM-935
|
Installer
|
|
To install crankshaft front seal ring
|
|
KM-946
|
Protective caps
|
|
Removing and installing the valve springs and valve collets
|
|
KM-980
|
Remover/Installer
|
|
To remove/install sheathed glow plugs
|
|
KM-6000
|
Centring Tool
|
|
To remove and install front axle in conjunction with KM-904
|
|
|
|
KM-956
|
Holding Wrench
|
|
Of this, KM-956-1
|
Counterhold the belt pulley/crankshaft
|
|
|
|
KM-977-1
|
Bracket
|
| |
Remove and install crankshaft belt pulley using handle
KM-956-1
|
| |
Up to MY 2003 and engine number 17K44148
|
|
|
|

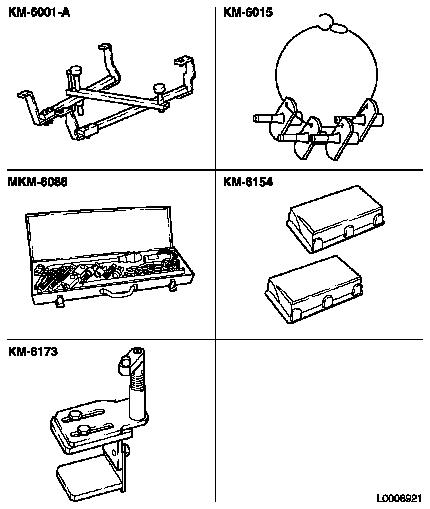

KM-6001-A
|
Engine Mount
|
|
To align engine to body in conjunction with KM-6173
|
|
KM-6015
|
Closure Plug
|
|
Sealing the fuel lines
|
|
MKM-6086
|
Valve spring - lever - automatic
|
|
Removing and installing the valve spring plate and valve
collets
|
|
KM-6154
|
Protective caps
|
|
Sealing the wiring harness sockets at the injection pump (VP 44
PSG 16)
|
|
KM-6173
|
Engine mounts
|
|
To support engine on front axle body in conjunction with
KM-6001-A
|
|
|
|

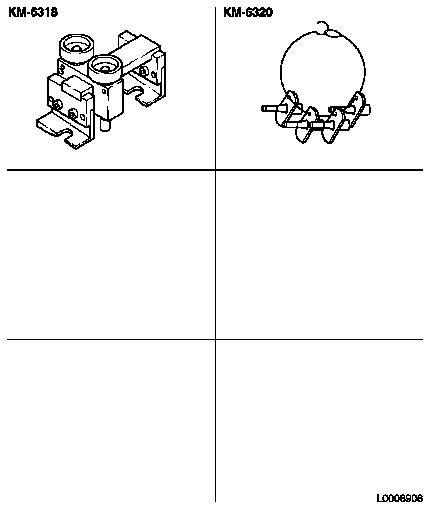

KM-6318
|
Installer
|
|
Installing the injection nozzle traverse
|
|
KM-6320
|
Closure Plug
|
|
Sealing the fuel lines
|
|
|
|
KM-6619
|
Bracket
|
| |
Remove and install crankshaft belt pulley using handle
KM-956-1
|
| |
From MY 2003 and engine number 17K44149
|
|
|
|
|
