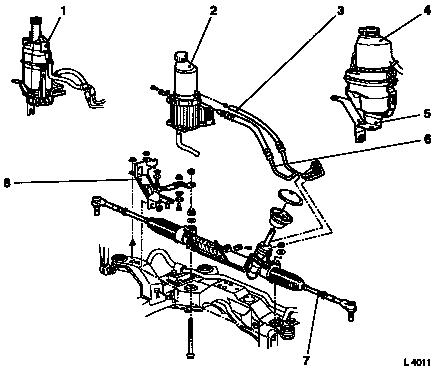

Illustration – Electro-hydraulic Power Steering (EHPS)

1. Electro-hydraulic supply unit (Gen. I, Delphi)
2. Electro-hydraulic supply unit (Gen. I, TRW)
3. Return Line
4. Electro-hydraulic supply unit (Gen. II)
5. Bracket for electro-hydraulic supply unit (Gen. II)
6. Pressure Line
7. Steering Gear
8. Bracket for electro-hydraulic supply unit (Gen. I)

Object Number: 2416758  Size: DEFAULT
