Replace decorative films (Adhesive Foiles)

Make

Vauxhall

Model

Astra H

Section

Adhesive Foiles › Repair Instructions › Replace decorative films

PaintReplace decorative films

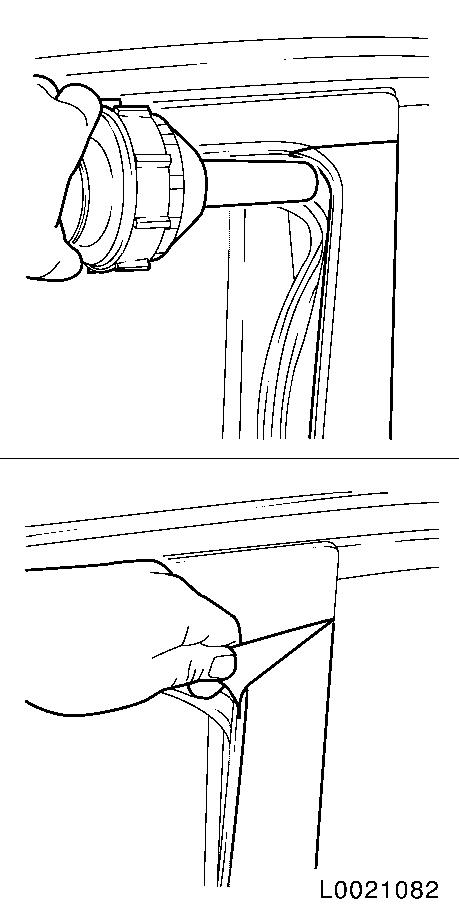

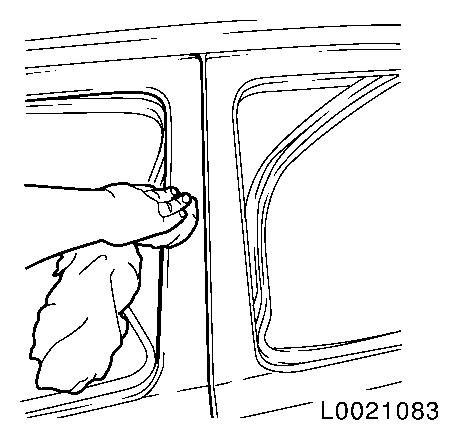

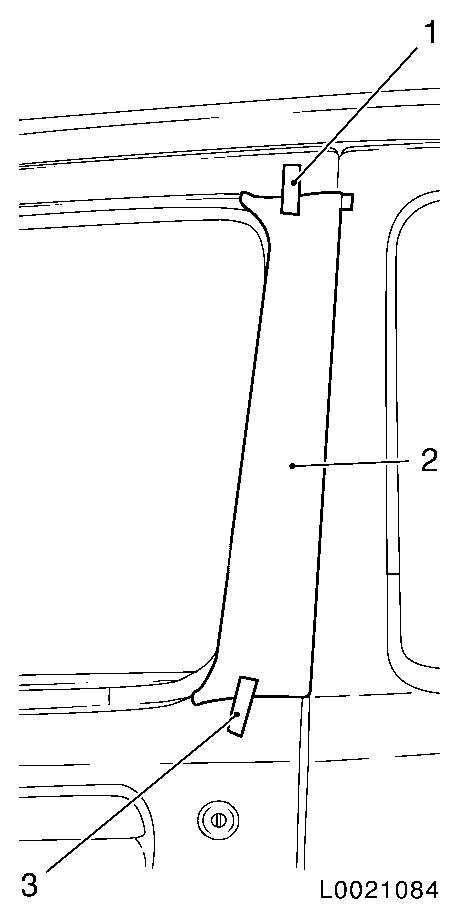

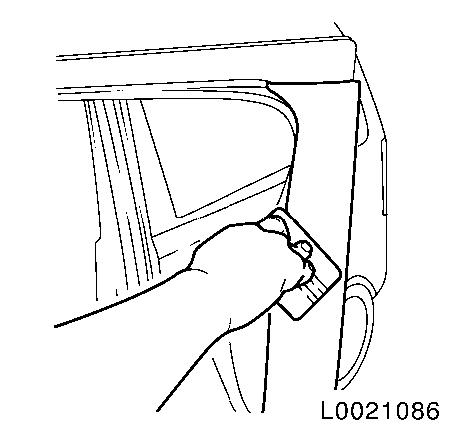

Replace decorative films   Remove 1.   Remove attaching parts such as rubber window seals and shaft strips 2.   Hear film slightly using a hot air blower and pull off   Install 3.   Clean adhesion surface with silicone remover Note:   Also pay attention to rear edges! 4.   Put decorative film in position (do not remove carrier film yet) •   Place decorative film (2) in position and secure with adhesive tape (1) and (3) Note:   Please ensure that decorative film is aligned with adjacent decorative films and window cut-outs during positioning! •   Mark installation position •   Remove decorative film 5.   Moisten the adhesion area •   Spray water with washing-up liquid onto component adhesion area using spray bottle 6.   Carefully remove decorative film from carrier film, position and stick on 7.   Drag air bubbles toward the outside using a plastic spatula 8.   Fold over outer edges or push into recesses and glue on 9.   Fit attaching parts

03 Body & interior
