Astra H

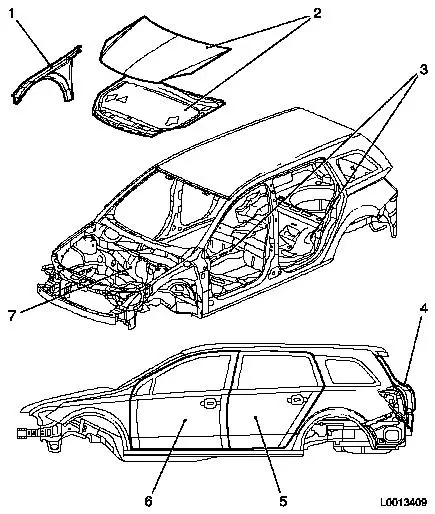

Interior painting areas (model L 35)

Object Number: 7361485 Size: DEFAULT

1. Wing
2. Bonnet
3. Passenger compartment
4. Tailgate
5. Rear doors
6. Front doors
7. Engine bay
