SteeringReplace steering wheel
|
Replace steering wheel
Note: Before
installation work affecting the airbag, follow the safety
instructions for the pyrotechnic systems.
 Remove
| 1. |
Remove airbag unit
Note: The airbag unit
must not be forced open and must always be laid with the cushion
side facing upwards.
|
| 2. |
Vehicles with Open and Start: Connect the battery and switch on
the ignition
|
| 3. |
Lock steering
| • |
Turn steering into straight-ahead position
|
| • |
Pull out ignition key.
Note: Disregard for
vehicles with Open and Start.
|
| • |
Allow steering lock to engage
Note: Vehicles with
Open and Start: Switch off the ignition. Open and close the
driver's door. The steering lock and ignition lock engage
automatically.
|
|
| 4. |

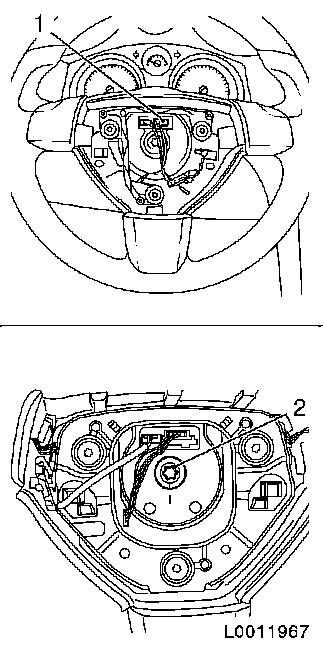

Separate wiring harness plug (1) for horn / infotainment
|
| 5. |
Remove steering wheel from steering column
| • |
Remove steering wheel from steering shaft
|
|
|
|
Install
| 6. |

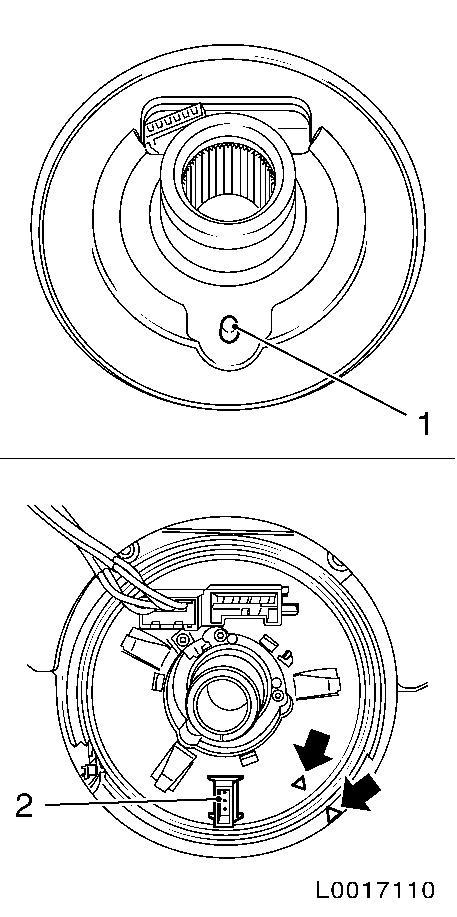

Insert steering wheel in Column Integration Module (CIM)
| • |
The guide pin (1) on the back of the steering wheel must engage
in the carrier (2) of the Column Integration Module (CIM)
Note: The airbag
contact unit must not be twisted.
Note: During removal
and installation, make sure that the markings (arrows) are in the
positions illustrated.
|
|
|
|
| 7. |

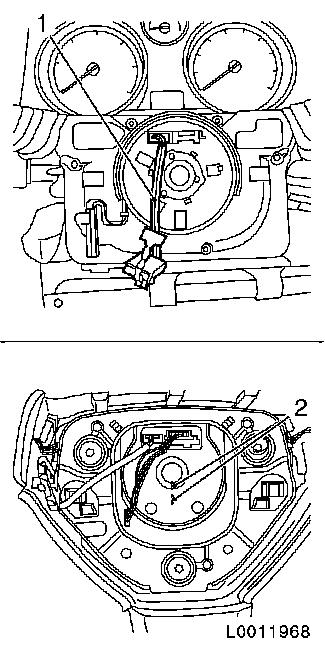

Guide airbag (1) wiring harness through opening in steering
wheel hub
|
| 8. |
Attach steering wheel to steering shaft
| • |
Place steering wheel on steering column
Note: Ensure that the
marks (2) on the steering wheel and steering shaft align
|
| • |
Screw in bolt 30 Nm
Note: Clean thread and
fit new bolt with locking compound
|
|
|
|
| 9. |
Connect wiring harness plug for horn / infotainment
|
| 11. |
Connect ground cable to battery.
|
|
|
