14 · Body & interior

Tyre filling system

AccessoriesTyre filling system

Tyre filling system

Some vehicles have a tyre filling system instead of a spare tyre and the Tigra-B has a tyre spray.

These systems only have a limited storage life. Before delivery check that the system can be used until the first service date.

The expiry date is printed on the Opel / Vauxhall Service sealant bottle.

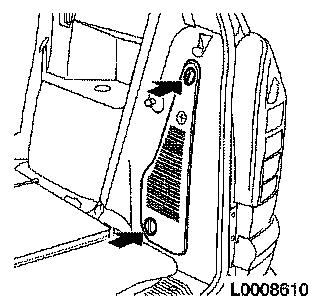

The tyre filling system for the Zafira CNG is in the right-hand storage compartment in the side panelling.

To open the cover, turn the knobs 90°. To close it, insert the cover at the back and turn the knobs back until it engages.

The tyre filling system in the Zafira CNG with the cover removed.

If the bottle is suitably positioned in the compartment there will be no need to remove it to check the limit date.

Tigra-B tyre spray

The storage life of the tyre spray is 3 years.

During inspection, only the "best by" date is checked. The tyre spray should only be replaced if necessary; it is not part of the inspection.

The tyre spray is located in the spare wheel cavity.

Mobile tyre filling system

The mobile tyre filling system is shown in the diagram on this page.

1.	Sealant bottle
2.	Filling hose
3.	Air hose
4.	Electrical connection
5.	Compressor
6.	Connector for sealant and air hoses

Vehicle model	Component	Part no.	Catalogue no.
Agila-B	450 ml bottle of sealant	13 287 407	17 58 176
Astra-G/-H/-J
Zafira-A/B
Corsa-C Combo
Corsa-D
Insignia
Meriva
Meriva-B
Vectra-C / Signum
Opel GT		93 165 364	17 58 641
Speedster / Tigra-B	Tyre spray 500 ml	9 163 326	17 58 255
Movano / Vivaro	700 ml bottle of sealant	13 148 912	17 58 172
All models	Bottle of sealant (700 ml) for repair kit	13 148 912	17 58 172
All models	Repair Kit	93 165 268	17 16 069

EPC group "N" - Disc wheels, spray, temporary tyre repair.

Note: When replacing the sealant bottle, turn the bottle so that the "use by" date is visible from the outside.
