Notes on Repairs of ABS/TC

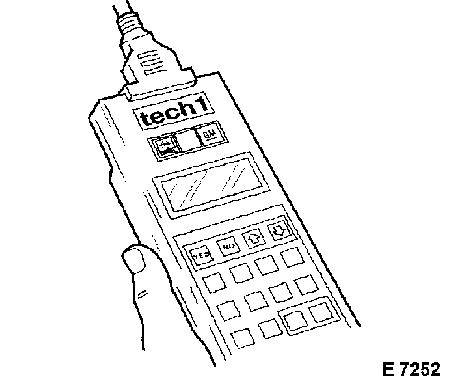

The entire ABS/TC unit must be checked following operations which affect the ABS/TC aggregates (e. g. accident repairs). Diagnosis can be performed using "TECH 1", "TECH 1A" or "TECH 2". Self-diagnosis of the ABS occurs at approx. 7 km/h, which may be available as a result of noises emitted from the return pump.

The following points must be observed when carrying out operations on vehicles with ABS/TC:

• When carrying out electrical welding work, the plug must be disconnected from the electronic ABS/TC control unit.
• During painting operations, the electronic ABS/TC control unit may be exposed indefinitely to a maximum of 80 °C / 176 °F.
• After operations on the brake system, it must be bled and a pressure test be carried out.
• Check all connections for leaks.
• Ensure secure connections at the battery terminals.
• Never use a battery booster to start the vehicle.
• Ensure that all connections to the wiring harness are secure.
• Never connect/disconnect the multiple plug to/from the electronic ABS/TC control unit with the ignition switched on.
