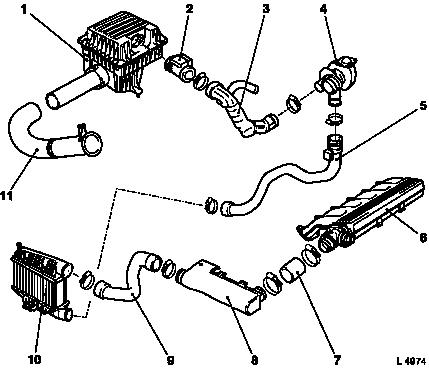

1. Air cleaner housing 2. Hot film mass air flowmeter 3. Air intake hose 4. Turbocharger 5. Charge air hose 6. Intake manifold 7. Charge air hose 8. Charge air pipe 9. Charge air hose 10. Intercooler 11. Air intake hose

Illustration

Note:   Any possible contamination (grease, oil, etc.) must be cleaned from hoses and connections prior to assembly.

Strict observance of a torque of 3.5 Nm / 2.6 lbf. ft. must be ensured when tightening the hose clamps.

Caution

Only if the hose clamps are correctly tightened to the specified tightening torque, can sealing of the intake system and thereby operational safety be ensured.
