Loudspeaker, Remove and Install > < Survey of Cable Routing and Installation Locations

Omega B



Console, Remove and Install

Object Number: 616191 Size: DEFAULT  Remove, Disconnect

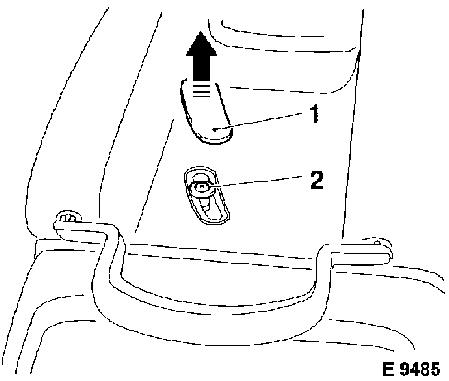

Lever off cover (1) and unscrew bolt (2). Remove telephone with holder. Disconnect wiring harness plug.

Object Number: 2390004 Size: DEFAULT

Unfasten 2 screws (arrow). For the remaining removal and installation - see operation "Centre Console, Remove and Install" in group "C".

Object Number: 616192 Size: DEFAULT  Install, Connect

Wiring harness plug, telephone with holder, cover.

Object Number: 2390005 Size: DEFAULT
