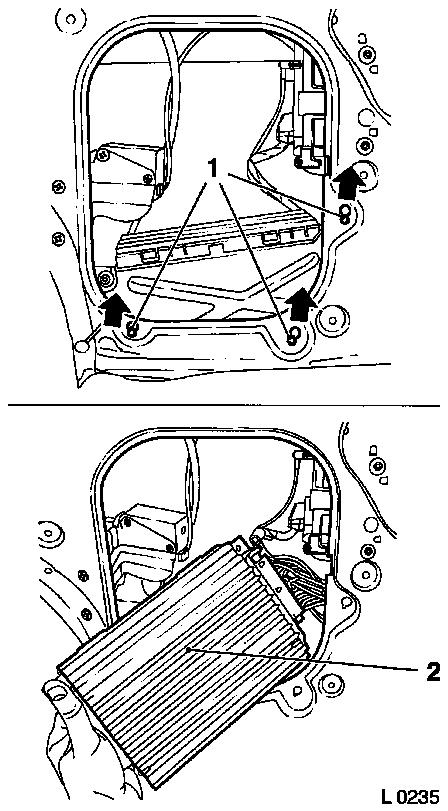

Remove centre load compartment cover. Right load compartment cover - see operation "Load Compartment Cover, Remove and Install" in group "C". Partially release lower rear end panel inner panelling. Remove load compartment separation grille. Rear right of rear quarter panel inner panelling - see operation "Rear Quarter Panel Inner Panelling (Rear), Remove and Install - Models 21, 22, 23" in group "C". Only release fastening bolts (1) and remove Bose amplifier. Release wiring harness plug for Bose amplifier (2) and disconnect.
 Install, Connect Connect wiring harness plug for Bose amplifier and lock. Bose amplifier, rear right of rear quarter panel inner panelling, right load compartment cover, load compartment separation grille, lower rear end panel inner panelling, centre load compartment cover. |
|
Remove, Disconnect
