Rear Loudspeaker, Remove and Install (Saloon) (Radio)

Make

Vauxhall

Model

Omega B

Section

Radio › Repair Instructions › Rear Loudspeaker, Remove and Install (Saloon)

AccessoriesRear Loudspeaker, Remove and Install (Saloon)

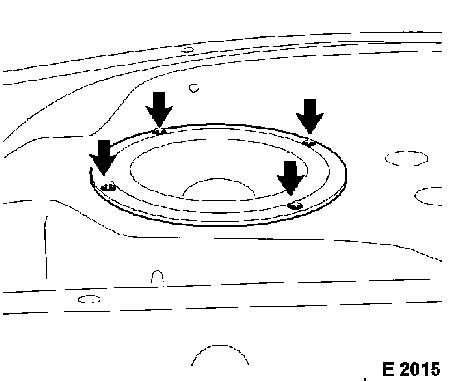

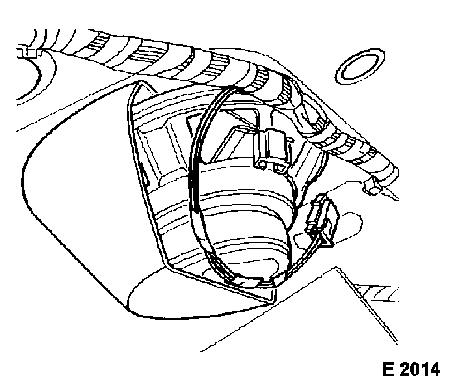

Rear Loudspeaker, Remove and Install (Saloon)     Remove, Disconnect    Upper rear end panel inner panelling - see operation "Upper Rear End Panel Inner Panelling, Remove and Install" in group "C". Detach wiring harness plug from loudspeaker, holding something against it to avoid breaking off the connections.   Loosen 4 bolts and remove loudspeaker.     Install, Connect    Insert loudspeaker in upper rear end panel and fasten, connect wiring harness plug, install upper rear end inner panelling.
