Removing

•     1 -    Remove steering wheel and steering column switch.
•     2 -    Remove instrument panel insert.
•     3 -    Press out ashtray and detach electrical connections. Do not forget glove compartment light.

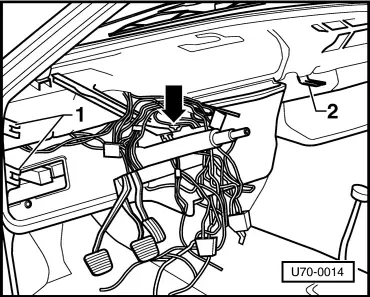

•     4 -    → Remove Phillips screws -1- and -2-, withdraw instrument panel from supports and clip -arrow-.

Installing

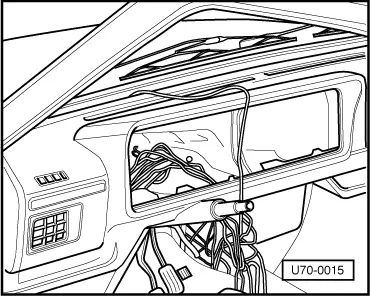

→ Following installation of the instrument panel the cut edge of the instrument panel foil must be carefully pressed under the windscreen seal using a plastic wedge.

Functional checks:

Instruments switches, warning lamps.
