Only the TDC mark -0- is provided on a replacement flywheel or replacement drive plate.

The corresponding ignition timing notch must be machined if the flywheel / drive plate is renewed.

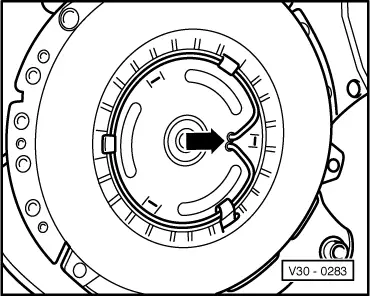

• ‒ → Mark position of ignition timing notch above TDC mark -0-/to the left (BTDC) or to the right (ATDC) of the centre of the TDC mark. This requires measurement of the arc length (dimension -a- or -b-).

Engine codes EM, FN1), FP, FR, FT, GH2), JB3)

     1)     Distributor 049 905 205 D

     2)     Distributor 055 905 205 P

     3)     Distributor 055 905 205 P/M

→ Engine code GY1), HM1), HN, HV2)

     1)     Distributor 026 905 206 T

     2)     Distributor 026 905 205 AG

Engine codes FB, FD, FH

Engine codes GH1), JB1)

     1)     Distributor 055 905 205 K

Engine codes EW, EX, RE

Engine codes FN1),AJD2), BBV2)

     1)     Distributor 055 905 205 F/G

     2)     Distributor 026 905 205 AK
