Overview - installation locations
- Make
- Volkswagen
- Model
- Golf Mk3
- Section
- Passenger protection › Airbag › Overview - installation locations
BodyOverview - installation locations

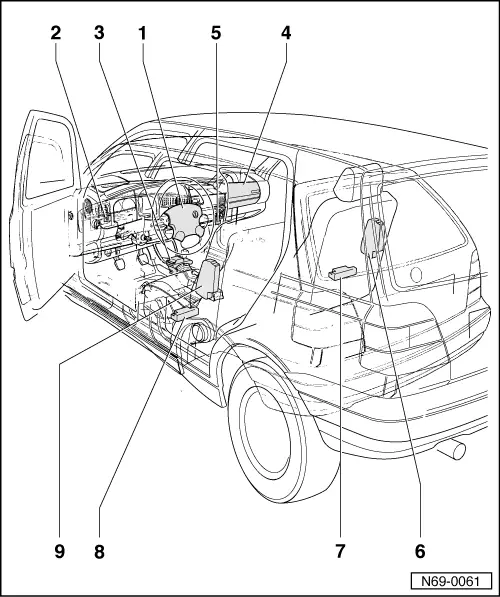

| Overview - installation locations |
| 1 - | Airbag unit, driver side |
| q | Removing → Chapter |
| 2 - | Airbag warning lamp -K75- |
| 3 - | Airbag control unit -J234- |
| q | Removing → Chapter |
| q | Adapting components (coding) → Chapter |
| 4 - | Airbag unit, front passenger side |
| q | Removing → Chapter |
| q | Deactivation → Chapter |
| q | Deactivating and activating (adaptation) → Repair manual, Body self-diagnosis; Rep. Gr. 01; Self-diagnosis of the airbag system; Deactivating and activating passenger-side airbag unit |
| 5 - | Diagnosis connector |
| 6 - | Side airbag, front passenger side |
| q | Removing → Chapter |
| q | Deactivation → Chapter |
| 7 - | Sensor (side airbag, front passenger side) |
| q | Removing → Chapter |
| 8 - | Sensor (side airbag, driver side) |
| q | Removing → Chapter |
| 9 - | Side airbag, driver side |
| q | Removing → Chapter |
| q | Deactivation → Chapter |
