Assembly overview - windbreak
- Make
- Volkswagen
- Model
- Golf Mk3
- Section
- Interior equipment › Windbreak › Assembly overview - windbreak
BodyAssembly overview - windbreak

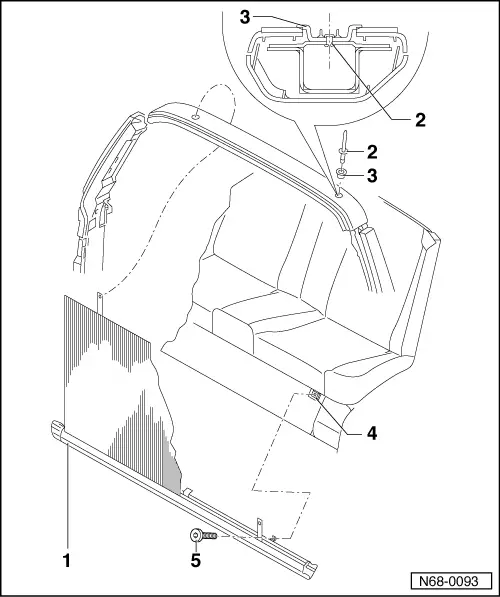

Assembly overview - windbreak – diagram from the Body chapter of the Volkswagen Golf Mk3 factory manual.
| Assembly overview - windbreak |
| 1 - | Windbreak |
| 2 - | Rivet |
| 3 - | Mount for push button |
| 4 - | Retaining bracket for rear bench seat |
| 5 - | Socket head bolt |
| q | 8 Nm |
