Golf Mk3

Retrofitting windbreak
Retrofitting windbreak

–  Remove the lower socket heat bolts -1- (-M6- x 12) for the rear bench seat.
–  Screw on the windbreak -2- over the retaining brackets for the bench seat using the socket head bolts -3- (-M6- x 20); specified torque: 8 Nm.
  N68-0094

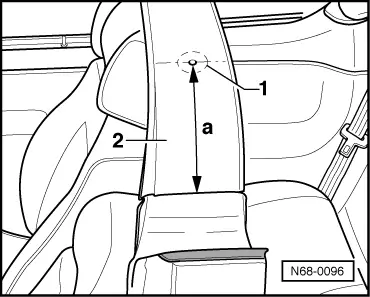

–  Mark dimension -a- (a = 157 mm) on the centre of the roll bar using a tape measure.
Vehicles from vehicle ID number 1ERK 015 228
–  Feel through the foam strip for perforation -1- and mark it.
–  Break perforation -1- out of the roll bar cover. If necessary, use a knife to cut away the foam strip -2- on top of it.
  N68-0096
Vehicles before vehicle ID number 1ERK 015 228

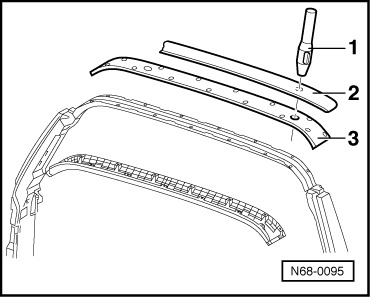

–  Use hollow punch (Ø 29 mm) -1- to punch out the marked area in the foam strip -2- and roll bar cover -3-.
–  Place the mount for the push button in the punched-out holes and mark the drill hole for the hollow rivet on the roll bar.
–  Drill a hole Ø 3.5 mm for the hollow rivet in the roll bar.
  N68-0095
All vehicles

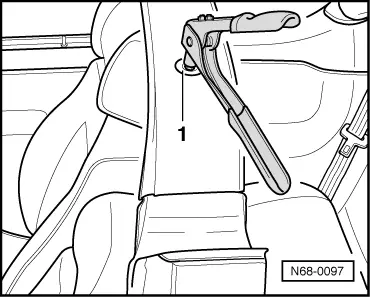

–  Rivet the mount for the push button onto the roll bar.
  N68-0097
