Volkswagen Golf Mk404 · Vehicle electrics
04 · General

Electronic anti-theft system

Make
Volkswagen
Model
Golf Mk4
Section
Infotainment › Radio "Volkswagen Individual” › Electronic anti-theft system
Vehicle electricsElectronic anti-theft system
Electronic anti-theft system

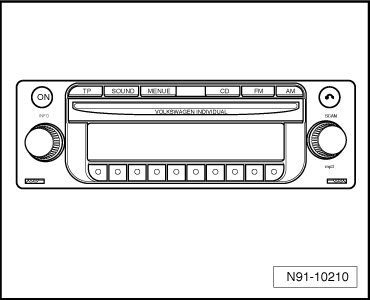

The radio unit is equipped with an electronic anti-theft system.
The electronic anti-theft system is activated and blocks the radio unit as soon as:
t  The voltage supply (terminal 30) drops below a predetermined voltage.
t  The radio part fuse is blown.
t  The radio unit is disconnected from voltage supply (terminal 30) (e.g. when removing radio unit).
and naturally,
t  When performing work on vehicle and vehicle battery (terminal 30) has been disconnected.
A radio unit which has been blocked by the electronic anti-theft system, is shown when “Enter Code Number” appears in the display when switching the unit on.
Deactivate the electronic anti-theft system to remove the unit lock → Chapter.
