Volkswagen Golf Mk404 · Vehicle electrics
04 · General

Removing

Make
Volkswagen
Model
Golf Mk4
Section
Telematics system › Removing and installing › Removing
Vehicle electricsRemoving
Removing
Before beginning dismantling work, perform the following steps:
–  Switch off ignition and all electrical consumers and remove ignition key.

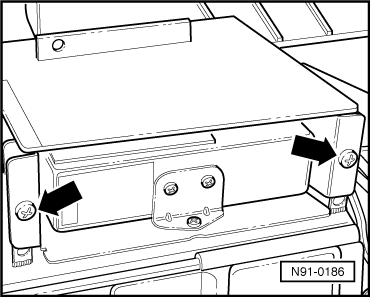

–  Remove the two Phillips screws -arrows- and remove control unit with installation frame.
  N91-0186

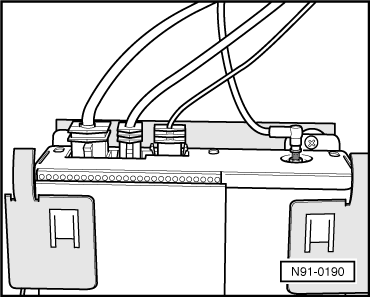

–  Disconnect wiring harness connection and aerial cable connection on back of control unit.
  N91-0190
