Golf Mk6

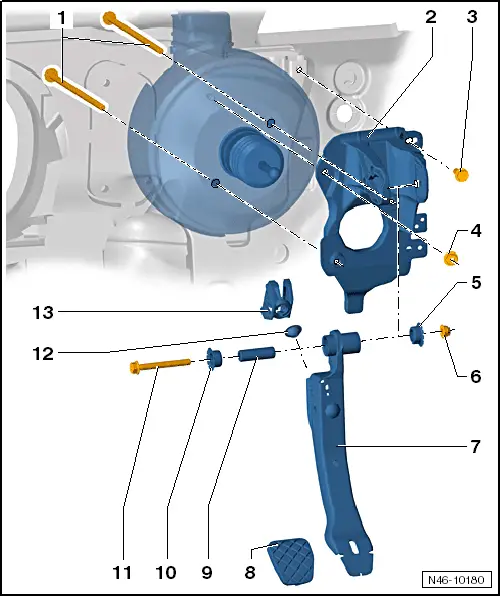

| Assembly overview |
WARNING
|
| Grease all bearing points with polycarbamide grease -G 052 142 A2- before installing. |
| 1 - | Twelve point bolt, 25 Nm |
| 2 - | Mounting bracket |
| q | Removing and installing → Chapter. |
| 3 - | Hexagon bolt, 25 Nm |
| 4 - | Self-locking hexagon nut, 25 Nm |
| q | Always renew after removing. |
| 5 - | Sleeve bearing |
| 6 - | Self-locking hexagon nut, 25 Nm |
| q | Always renew after removing. |
| 7 - | Brake pedal |
| q | Removing and installing → Chapter. |
| 8 - | Cap |
| 9 - | Pivot pin |
| 10 - | Sleeve bearing |
| 11 - | Hexagon bolt |
| 12 - | Bearing shell |
| 13 - | Mounting |
| q | For ball head of brake servo plunger rod. |
