Passat (B3)

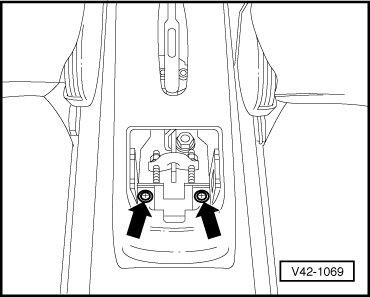

| Assembly overview - handbrake lever |
| 1 - | Handbrake lever |
| q | Different versions for rear drum and rear disc brakes. |
| q | Before removing take out centre console. |
| 2 - | Handle |
| q | Pull off forwards, remove cover using a small screwdriver first → Fig.. |
| 3 - | Adjusting nut |
| q | Adjusting handbrake: |
| q | Vehicles with drum brakes → Chapter. |
| q | Vehicles with disc brakes → Chapter. |
| 4 - | Hexagon nut |
| q | Lock using adjusting nut. |
| 5 - | Compensator |
| 6 - | Handbrake lever trim |
| q | Pull off forwards, pull hand grip off first → Fig.. |
| 7 - | Hexagon nut |
| 8 - | Handbrake cable |
| q | Different versions for rear drum and rear disc brakes. |
| q | Allocation → Electronic parts catalogue “ETKA”. |
|
|
|
|
|
|
