Volkswagen Passat (B3)03 · Vehicle electrics
03 · General

Removing:

Make
Volkswagen
Model
Passat (B3)
Section
Radio systems › Removing and installing radio › Removing:
Vehicle electricsRemoving:
Removing:

Radio release tool 3316 is required to remove the radio.

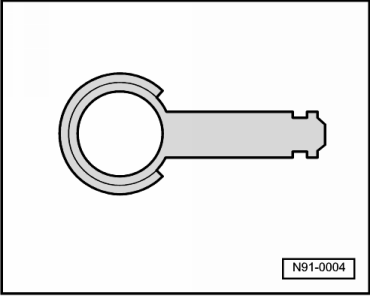

The radio release tool 3316 consists of two identical parts.
  N91-0004
–  Slide radio release tool 3316 into the release slots -arrows- until they engage.
  N91-0002

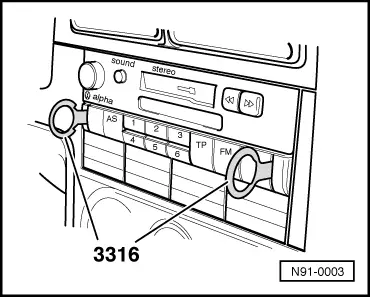

–  Pull radio out of the dash panel using the grip rings of the release tools.
Removing: – Volkswagen Passat (B3)  Note
t  When doing this the radio release tool 3316 must not be pushed to the side or tilted.
t  Press the locating lugs on the side of the radio inwards to remove the release tools from the radio.
  N91-0003
