AntennaR11 - remove and install|Installation > < AntennaR11 - remove and install

Polo Mk4

Removal
Removal
–  Remove the safety handles on the roof → Body - Internal assembly work; Rep. gr.68.
–  Remove the lining of column B → Body - Internal assembly work; Rep. gr.70.
–  Remove the rear reading lights → Electrical equipment; Rep. gr.96.
–  Remove the lining of column C → Body - Internal assembly work; Rep. gr.70.
–  Remove roof lining → Body - Internal assembly work; Rep. gr.70
–  Move away the pre-molded roof lining at the rear side → Body - Internal assembly works; Rep. gr.70.

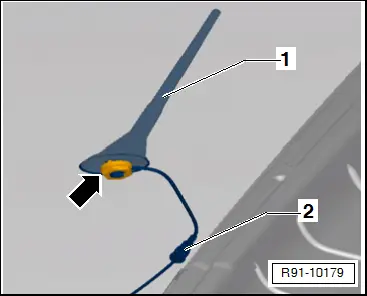

–  Remove the adhesive tape that protects the connector -2- and disconnect it.
–  Remove the antenna -2-with its amplifier.
  R91-10179
