3 Electrical systemBulbs

Bulbs

Specifications, electrical/electronic

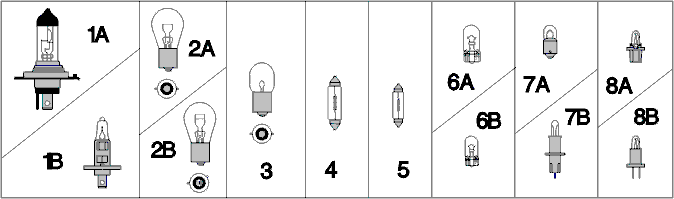

Bulb to fit	Rating	Fitting	Fig. no.	Part no.
Ashtray,front	1.2W	Special	8B	3545170-7
Ashtray, rear	1.2W	Special	8B	3545170-7
Automatic shift indicator	1.2W	Special	7B	1363149-4
Rear light	21W	BA 15s	2A	965826-1
Trunk light 4-D	10W	SV 8,5	4	182039-8
Rear light 4-door	5W	BA 15s	3	965828-7
Rear light 5-door	21/4W	BAZ 15d	2B	977710-3
Rear courtesy light 5-D	10W	SV8,5	4	182039-8
Flashers, front	21W	BA 15s	2A	965826-1
Flashers, rear	21W	BA 15s	2A	965826-1
Flashers, side	5W	W 2,1x9,5d	6A	949671-2
Brake light	21W	BA 15s	2A	965826-1
Brake light, high-level	21W	BA 15s	2A	965826-1
Brake light, spoiler-mounted	5W	W2,1x9,5d	6A	949671-2
Cigarette lighter	1.2W	Special	7B	1363149-4
Dim rear light	21W	BA 15s	2A	965826-1
Door warning light	3W	W 2,1x9,5d	6A	942571-1
Glove compartment light	2W	BA 9s	7A	182055-4
Courtesy light	5W	W 2,1x9,5d	6A	949671-2
Dashboard light	3W	W 2,1x9,5d	6A	VDO: 942571-1
				YAZAKI: 942571-1
Dashboard: Warning and indicator lights	1.2W	W 2x4,6d	8A 6B	VDO: 966326-1 YAZAKI: 942327-8
Rear reading light	5W	BA 9s	7A	976425-9
Vanity mirror light	1.2W	SV 5,5	5	977245-0
License plate light	5W	W 2.1x9,5d	6A	949671-2
Parking lights, front	5W	BA 15s	3	965828-7
Control panel light, ECC	1.2W	Special	8A	6849560-5
Control panel light, AC unit	1.2W	Special *		3545854-6 *
Headlights with H4 bulb	60/55W	P 43t-38 / H4	1A	963187-0
Headlights with 2 x 1 H1 bulbs	55W	P 14s / H1	1B	942775-8
Headlights (US/Can), single bulb	HB2	9003
Headlights (US/Can), dual bulb High beam Low beam	HB3 HB4	9005 9006
Ceiling light, front	5W	BA 9s	7A	976425-9
Ceiling light, seatbelt warning light	1.2W	W 2x4,6d	6B	942327-8

* Replace PCB if bulb blows.

---

Applies to: 1996

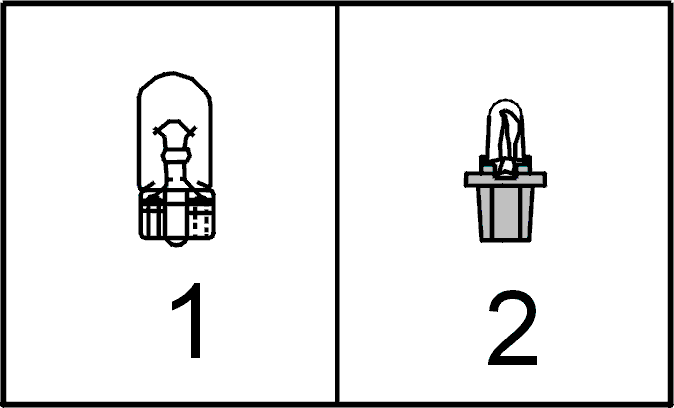

Bulb for	Power	Figure no.	P/N
Lighting in combined instrument panel	3 W	1	942571-1
Warning and indicator lamps	1.2 W	2	942327

---

Applies to: 1996–1997

Bulb for	Output	Figure no.	P/N
Lighting in combined instrument panel	3W	1	942571-1
Warning and indicator lamps	1.2W	2	977709-5
Lighting in clock module/trip computer	1.2W	2	966326-1
