3 Electrical systemFuses

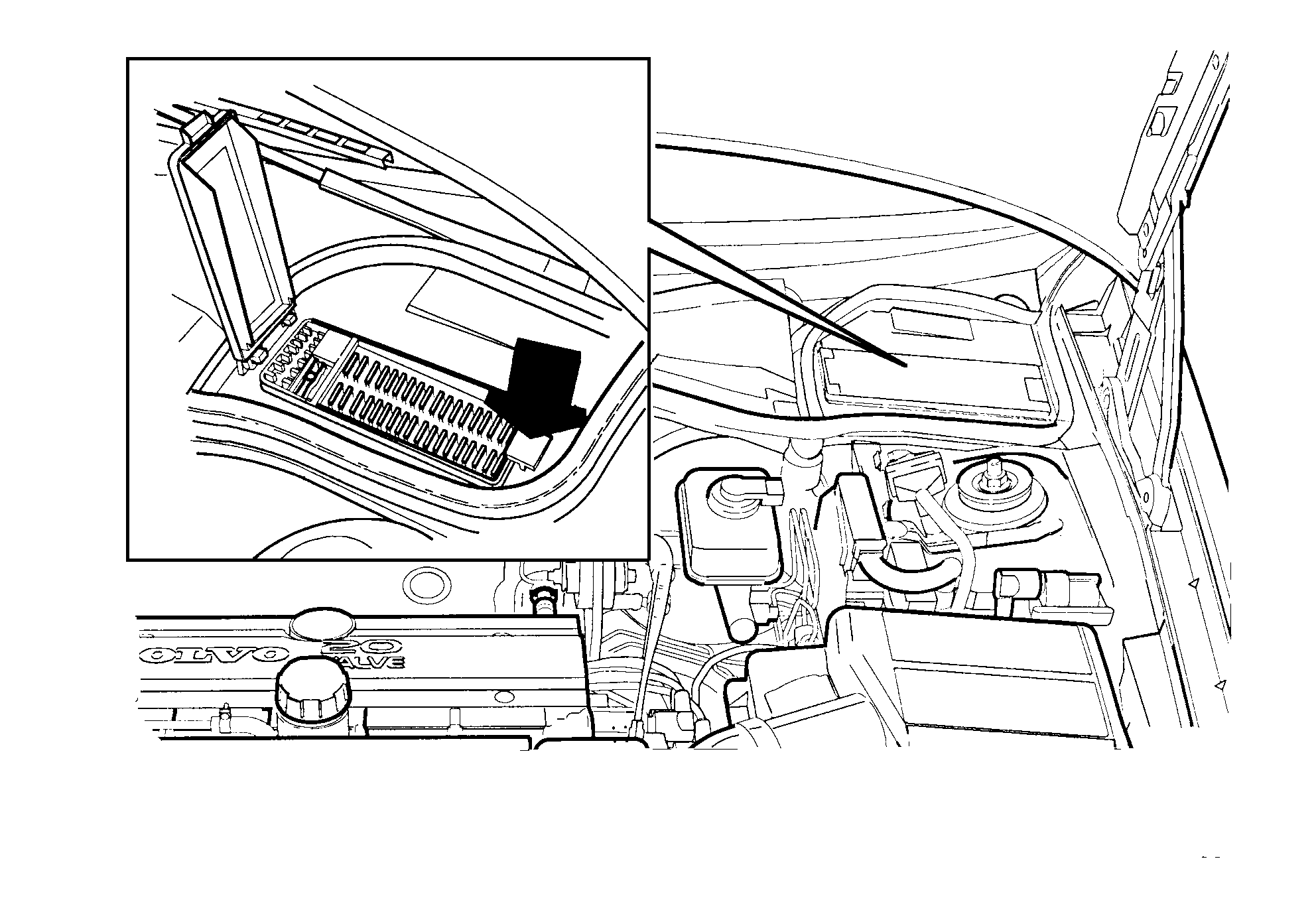

Fuses

Specifications, electrical/electronic

No.	Function	Rating
1	Transmission control module (TCM), engine control module (ECM), ignition control module (ICM)	15
2	Fuel pump (FP)	15
3	Interior lighting, oil level sensor, oil pressure switch, exhaust temperature sensor, and speed warning	10
4	Spare	-
5	Blower fan, speed 4	30
6	Central locking and alarm	25
7	Audio	15
8	Pulsed secondary air injection system (PAIR) pump	40
9	ABS + TRACS	30
10	Heated rear seat	15
11	Heated rear windshield + power door mirrors	30
12	Stop (brake) lamp	10
13	Hazard warning signal flasher + high beam flash and alarm	15
14	ABS + TRACS	30
15	Radio, interior lighting, door open warning lamps, oil level sensor, Oil pressure switch and remote controlled central locking	10
16	Antenna amplifier, power antenna, trailer contact and accessories	30
17	Key reminder	10
18	Spare	-
19	Left high beam	15
20	Right high beam + high beam warning lamp	15
21	Left low beam	15
22	Right low beam	15
23	Left parking lamps and license plate lighting	10
24	Right parking lamps	10
25	Fog tail lamp + fog tail lamp indicator lamp	10
26	Heated front seat and power door mirrors	25
27	Turn signal lamps and back-up (reversing) lamp	15
28	Heated rear windshield, seat belt reminder, cruise control, shift lock and bulb failure warning sensor (Germany).	10
29	ABS + TRACS	15
30	Cigarette lighter	10
31	Blower fan, speed 1 - 3 and climate control	25
32	Radio and remote controlled central locking	10
33	On-board diagnostic (OBD) unit, power seats, headlamp height adjustment motors, tailgate wiper and washer pump	15
34	Horn, windshield wipers, headlamp wipers and washer pump	25
35	Instrument lighting, control panel lighting and power sun roof	10
36	Spare	-
37	Power windows and power sun roof	Automatic 20
38	Spare	-
39	Left power seat	Automatic 20
40	Right power seat	Automatic 20

List of accessory connector connections and ratings (1994-).

8-pin connector
Description	Position	Fuse	Rating
30-supply	1	16	10 A
X-supply (can be used to control a relay)	2	35	1 A
High beam signal current (can be used to control a relay)	3	20	1 A
Low beam signal current (can be used to control a relay)	4	21	1 A
Parking lamp signal current (can be used to control a relay)	5	23	1 A
Supply from rheostat	6		1 A
Supply for auxiliary lamps, to a connector near the front of the engine	7
Ground	8

1-pin connector
Description		Fuse	Rating
30-supply		16	10 A
