Temperature Gauge: Testing and Inspection
Testing Temperature Gauge

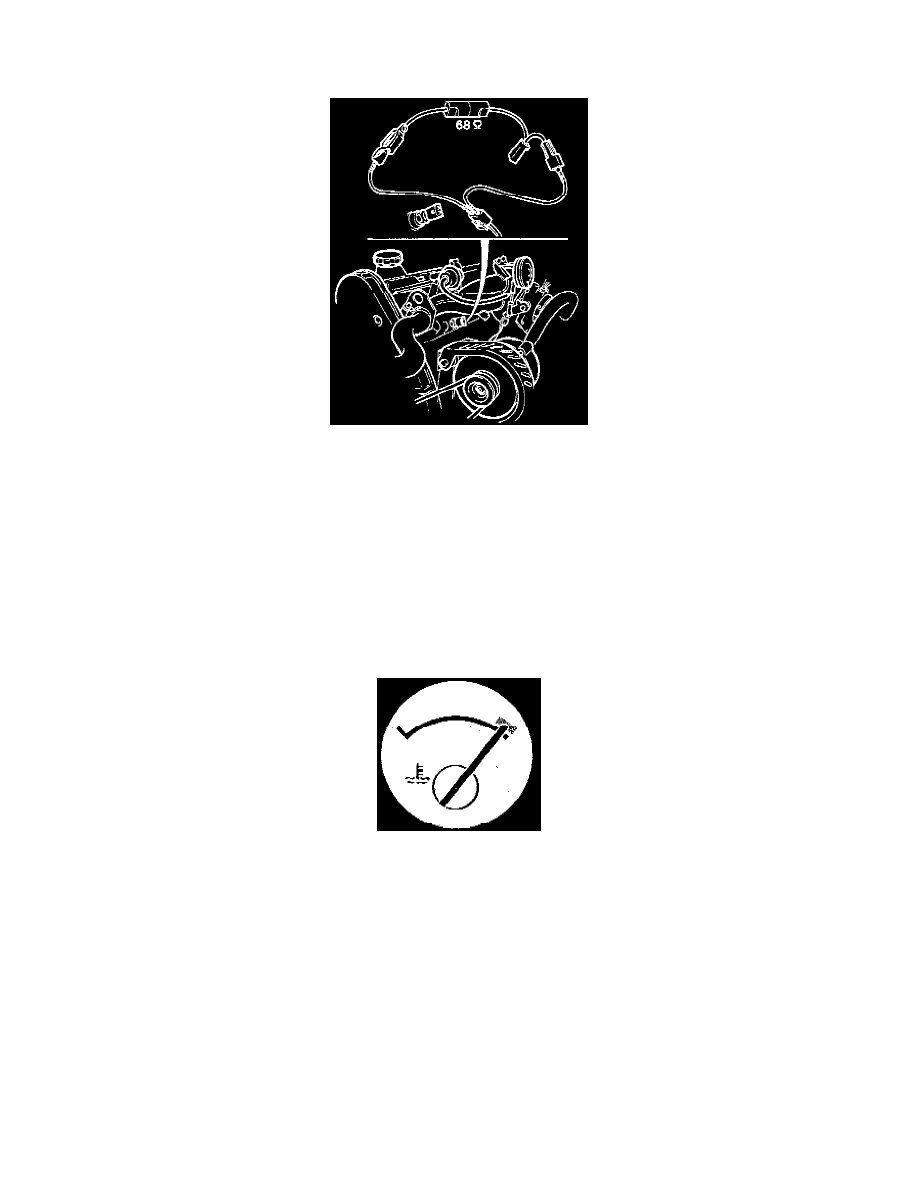

Check temperature gauge with a test resistor of 68 ohms, P/N 999 5824-1.

-

Disconnect battery negative lead.

-

Unplug connector at sensor.

-

Connect the test resistor between the two terminals in the connector.

-

Replace battery negative lead and turn on ignition.

If the gauge is working correctly. the pointer should be in the middle of the red zone. See illustration.
Tolerance: breadth of the pointer.
-

If the gauge shows correctly. the sensor is faulty.

-

If the gauge shows incorrectly. the gauge itself is faulty

-

Measure the resistance of the sensor.
When engine is warm: 100-260 ohm
When engine is cold: 780 ohm.

If the gauge does not register at all. check the lead. Check for continuity in the lead with an ohmmeter.
-

If the lead is OK replace the gauge.

-

Test.
