Clutch

Make

Volvo

Model

900 Series 940 Factory Service Manual

Year

1991–1998

Section

41 Clutch › Specifications, mechanical › Clutch

4 Power transmissionClutch

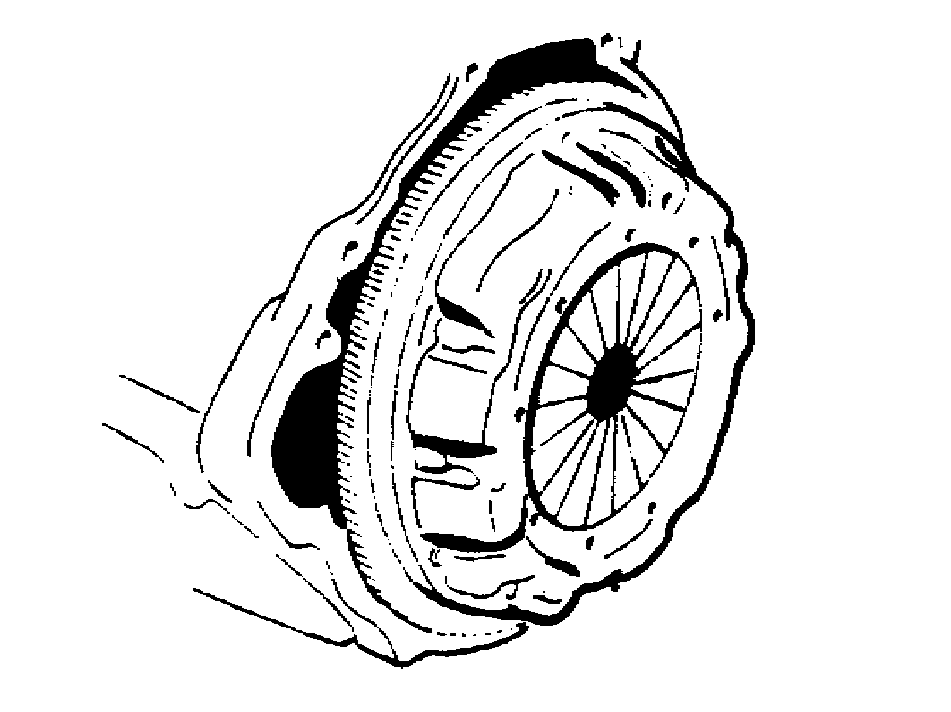

Clutch

Specifications, mechanical

Specifications

Clutch type …		Single dry plate
Plate diameter: B19/23E, B19ET, B200K, B230E/F …		8½ in (216 mm)
	Others …	9 in (228 mm)
Pressure plate, max. warpage …		0.2 mm (0.008 in)

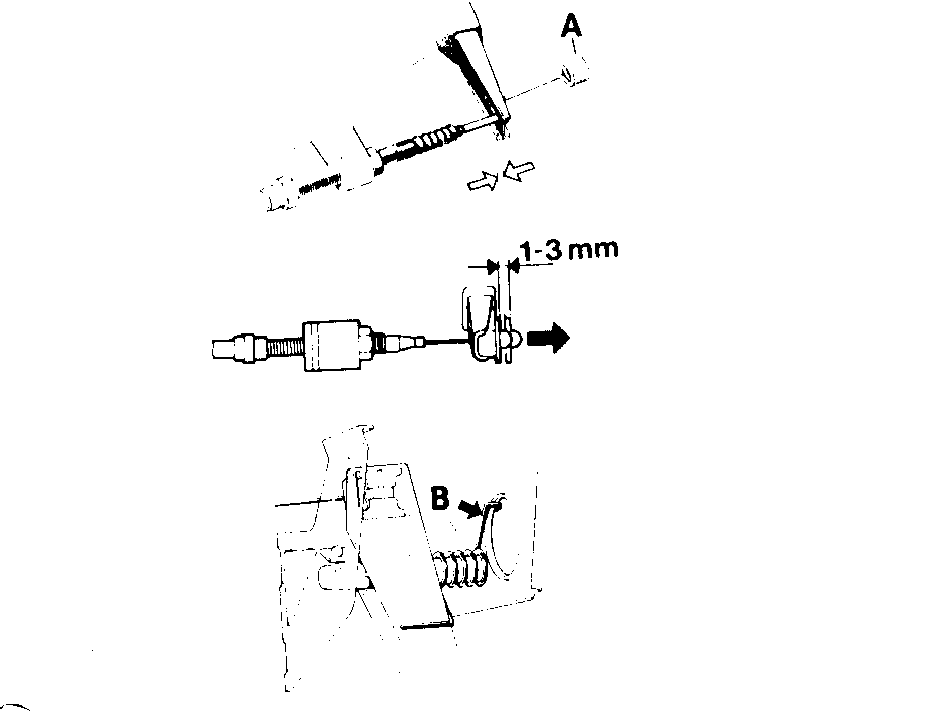

Clutch fork free travel
	hydraulic control …	Not adjustable
	cars with return spring (A) (forward play) …	1-3 mm (0.039-0.118 in)
	cars without return spring (With the spring (B) in the pedal mechanism located as shown in the picture) (rearward play) …	1-3 mm (0.039-0.118 in)
Clutch pedal travel …		160 mm (6.3 in)
