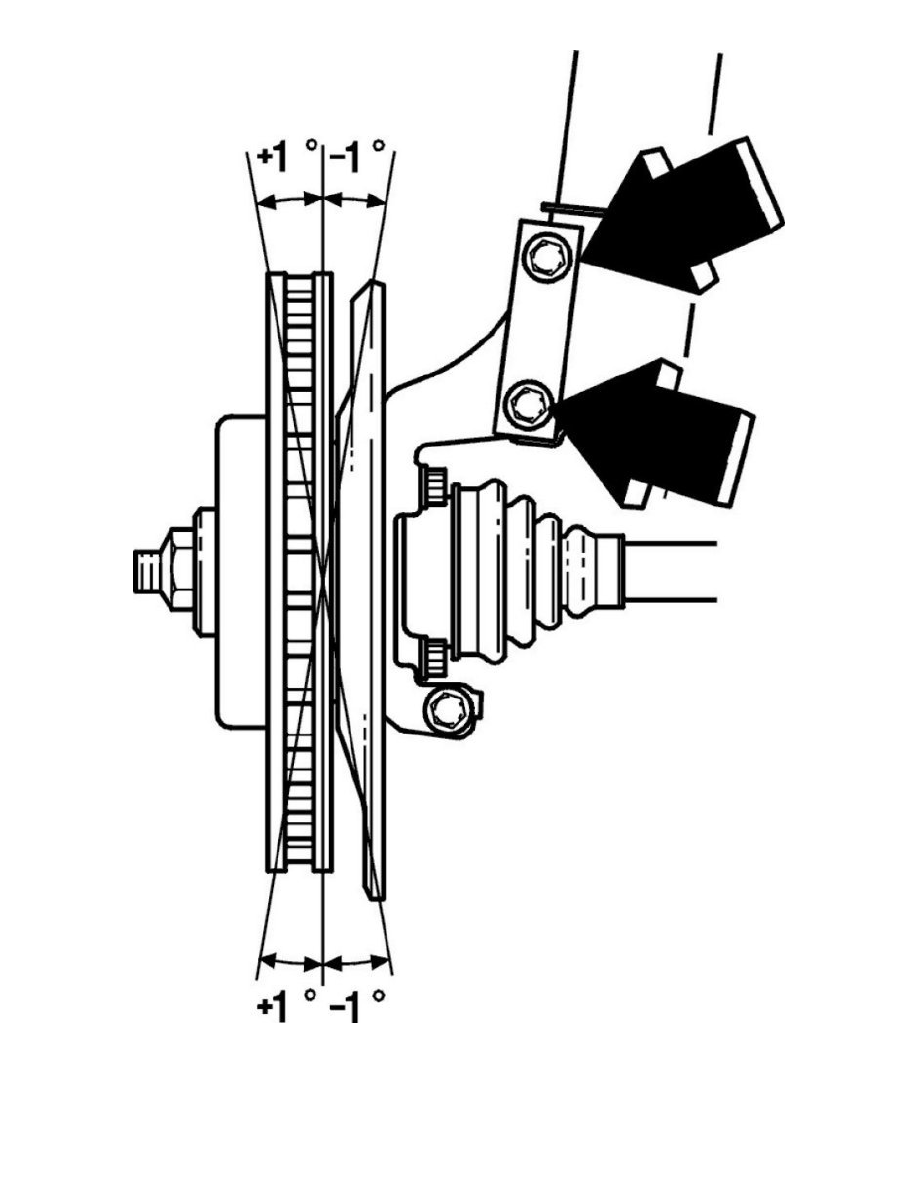

Cars with sockets in the wheel spindles:
Remove the upper socket from the wheel spindle (or both sockets, depending on the amount of adjustment required). One socket generates an angle
change of approx.

0.5° . If both sockets are removed, the change is approx.  .

Cars without sockets in the wheel spindles:
Replace the screws and nuts and adjust as described below.
