C70 Coupe L5-2.3L Turbo VIN 53 B5234T3 (2001)
-
Detach the drain hose and push it to one side
-

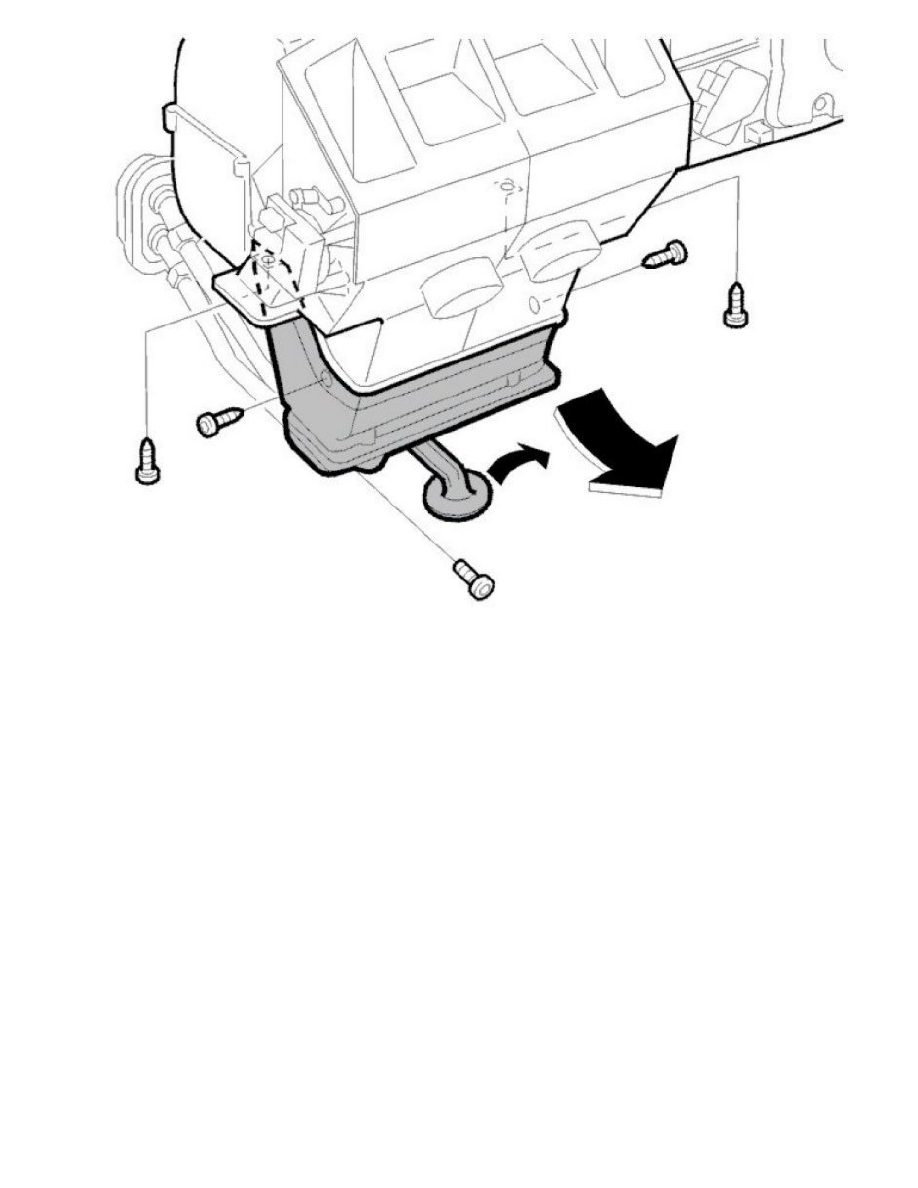

Remove the screws on left and right-hand sides of the cover for the heat exchanger
-
Remove the screw for the pipe flange for the heat exchanger.
Note! Place plenty of absorbent paper under and around the pipe flange.
-
Remove the heat exchanger and its cover
-
Remove the heat exchanger the cover.
Installation
Work in the passenger compartment
-
First read Before starting work on the heat exchanger
-
Install the heat exchanger in the cover.
Note! Check the seal when installing.
-
Install the heat exchanger and the cover. Align the pipes in the flange
-
Install the screw in the pipe flange on the heat exchanger
-
Install the drain hose.
Work in the engine compartment
-
Remove the lock grip pliers 115 8957 HOSE PLIERS See: Tools and Equipment/115 8957 Hose Pliers from the hoses
-
Top up the coolant
-
Test for leaks.
Work in the passenger compartment
-
Install the bracket for the RTI or amplifier if applicable
-
Install the knee bolster if necessary
-
Install the left and right side carpet mountings
