3 Electrical systemBulbs

Bulbs

Specifications, electrical/electronic

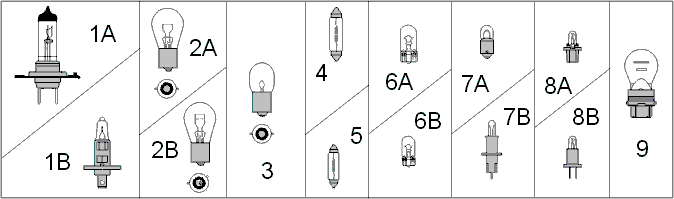

Bulb for	Output	Base	Figure no.
Ashtray, front/rear	1.2 W	Special	8B
Automatic transmission gear position indicator	1.2 W	Special	7B
Back-up (reversing) lamps	21 W	BA 15s	2A
Cargo compartment lighting, 4-door	10 W	SV 8.5	4
Tail lamp, 4-door	5 W	BA 15s	3
Rear parking lamps/Fog lamps 5-door	21/4 W	BAZ 15d	2B
Rear courtesy lighting, 5-door	10 W	SV 8.5	4
Turn signal lamps, rear	21 W	BAU15s	2A
Turn signal lamps, front	21 W	BAU15s	9
Turn signal lamps, side (yellow bulb)	5 W	W2.1x9.5d	6A
Stop (brake) lamp	21 W	BA 15s	2A
High level stop (brake) lamp, 4-door (with non-replaceable LED)		Special
High level stop (brake) lamp, 5-door (with non-replaceable LED)	Special
Cigarette lighter, front/rear	1.2 W	Special	7B
Rear fog lamps, 4-door	21 W	BA 15s	2A
Front fog lamps	55 W	PI4.5s	1B
Door open warning lamp	3 W	W 2.1x9.5d	6A
Glove compartment lighting	2 W	BA 9s	7A
Main lighting switch	1.2 W		6B
Courtesy lighting	5 W	W 2.1x9.5d	7A
Rear reading lamp	5 W	BA 9s	7A
Vanity mirror lighting	1.2 W	SV 5,5	5
License plate lighting	5 W	W 2.1x9.5d	6A
Front parking lamps	5 W	W2.1x9.5d	6A
ECC control panel lighting	1.2 W	Special	8A
Climate control unit control panel lighting	1.5 W	Special
Low beam headlamp with H7 bulb	55 W	PX26D	1A
High beam headlamp with H7 bulb	55 W	PX26D	1A
Front courtesy lighting	5 W	BA 9s	7A
Courtesy lighting seat belt reminder lamp	1.2 W	W2x4.6d	6B
