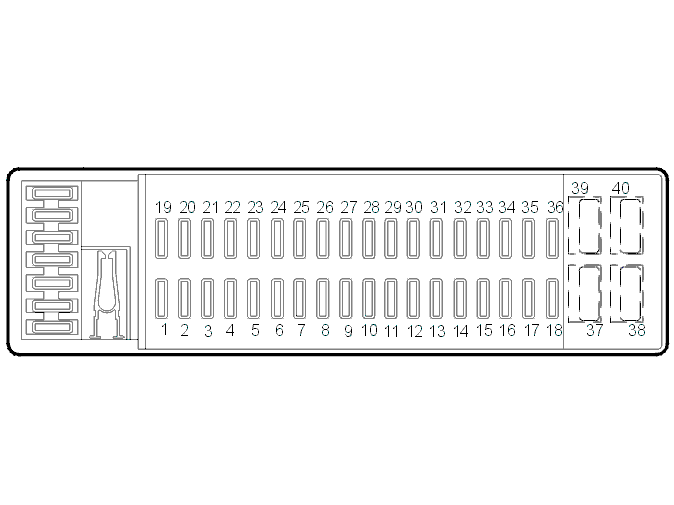

Fuses

Specifications, electrical/electronic

No.	Function	Rating		No.	Function	Rating
1	Spare	-		21	Left low beam	15
2	Central locking, gear selector, RTI	10		22	Right low beam	15
3	ABS	10		23	Left parking lamps, License plate lighting	10
4	Immobilizer	10		24	Right parking lamps	10
5	Climate control, On-board diagnostic system (OBD)	15		25	Fog tail lamp, Fog tail lamp indicator lamp	10
6	Central locking, Anti-theft alarm, Siren	20		26	Light switch	15
7	Radio	15		27	Back-up (reversing) lamp, turn signal lamp	15
8	Light switch, Immobilizer	15		28	Heated seats	25
9	Heated rear seat	20		29	Rear demist, Heater door mirrors, Seat belt reminder, P/N position switch automatic transmission, Bulb failure warning sensor, Cruise control, Engine coolant heater (diesel)	10
10	Ignition switch	15		30	Front cigarette lighter, RTI	15
11	Stop (brake) lamp	10		31	Climate control	25
12	Engine coolant heater (diesel)			32	Radio	10
13	Hazard warning signal flasher, Full beam flash, remote control, glass breakage sensor, Anti-theft alarm	15		33	Headlamp height adjustment, Tailgate wiper/washer	15
14	Rear demist, Heated door mirrors	30		34	Horn, Windshield wipers/washers	25
15	Courtesy lighting, Glove compartment lighting, Door courtesy lighting, Door open warning lamps, Cargo compartment lighting, Seat belt reminder, RTI	10		35	Instrument and control panel lighting, Power sun roof (Accessory)	10
16	Power antenna, (Trailer socket)	30		36	Rear cigarette lighter, Power seats	15
17	Front fog lamps	20		37	Power windows, Power sun roof	Automatic 20
18	Key reminder, Central locking	10		38	Spare	Spare
19	Left high beam, Accessory	15		39	Left power seat	Automatic 20
20	Right high beam, High beam warning lamp	15		40	Right power seat	Automatic 20
