S80 2.9 L6-2.9L VIN 94 B6294S (2000)
Release socket/housing retainer
Use a thin screwdriver with a blade 3-4 mm wide.
-
Work the locking catches/eyes carefully loose on the socket or on the housing.
The number of locking catches/eyes and their location varies on different housings. There can also be variations between pin sizes in the housing types.
Note! Take care that the locking catches/eyes are not broken off when releasing the socket.

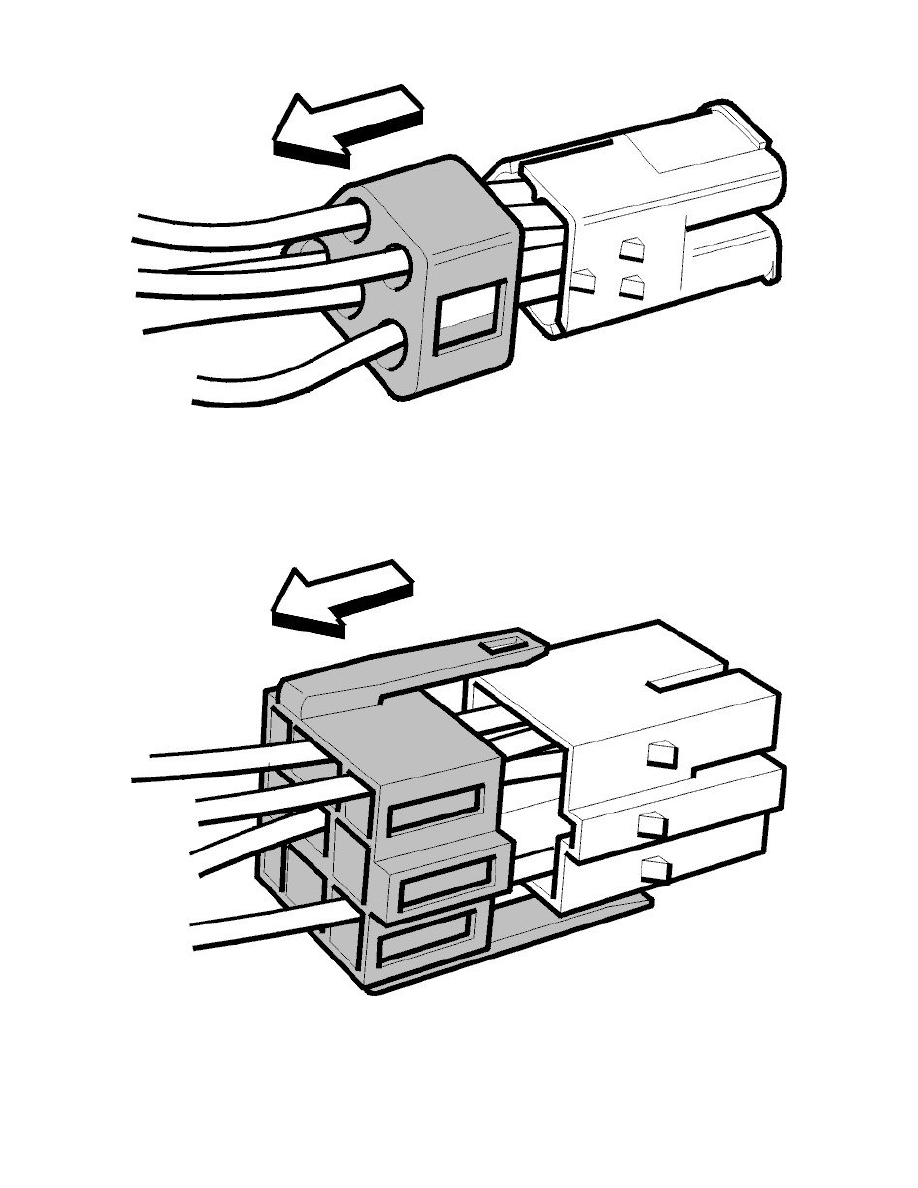

Remove
-
Remove socket (and pull it back on the cables).
Proceed
To replace a cable terminal the next step is to remove the old cable terminal in the housing.
-
Proceed to chapter Cable terminals, different types See: Diagrams/Diagnostic Aids/Cable Terminals, Different Types Primary locking in general
See: Diagrams/Diagnostic Aids/Primary Locking in General Using terminal removal tools See: Diagrams/Diagnostic Aids/Using Terminal
Removal Tools When the cavity opening has two extraction grooves See: Diagrams/Diagnostic Aids/Cavity Opening Has Two Extraction Grooves
