S80 2.9 L6-2.9L VIN 94 B6294S (2000)
Cavity opening with one extraction groove See: Diagrams/Diagnostic Aids/Cavity Opening With One Extraction Groove Housing with half-open
contact side See: Diagrams/Diagnostic Aids/Housing With Half-Open Contact Side Housings with square cavity openings See:
Diagrams/Diagnostic Aids/Housings With Square Cavity Openings Housings with round cavity opening See: Diagrams/Diagnostic Aids/Housings
With Round Cavity Opening Single terminal housings See: Diagrams/Diagnostic Aids/Single Terminal Housings.
When Secondary Locking Is of the Lid Type
When secondary locking is of the lid type
To open a housing secondary locking of the locking lid/catch type proceed as follows
General instructions
Note that these are general instructions, variations can occur in practice.
Regard the examples shown and the procedures described as guidelines.

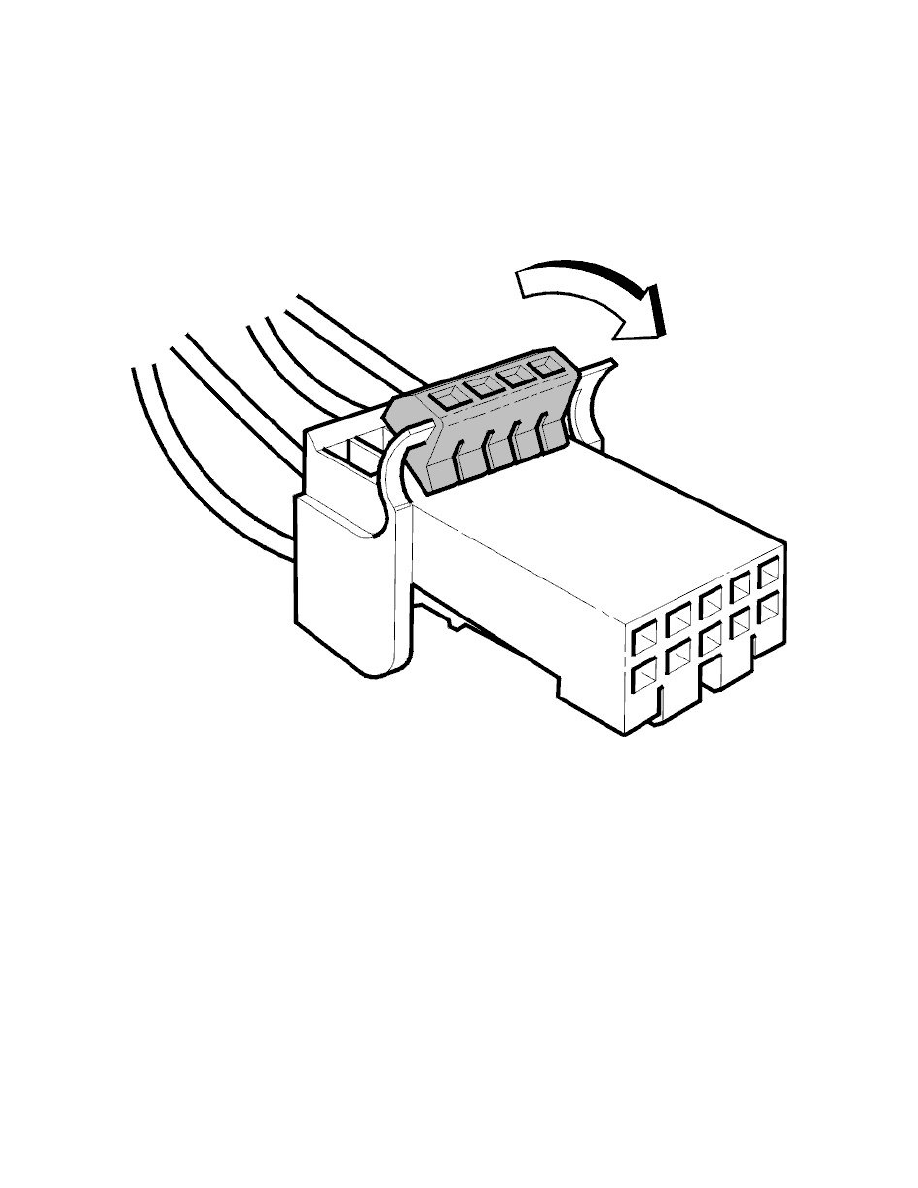

Open locking lid/catch
