S80 2.9 L6-2.9L VIN 94 B6294S (2000)
If the cable is to be stripped of the end insulation prior to terminal crimping in a cable terminal, check if a seal is required for that type of cable terminal.
-
A description of which cable terminals require seals can be found in Seal sws and plug See: Replacing Cable Terminals/Seal SWS and Plug.
If no seal is to be used on the cable terminal
-
Proceed to Length of the stripped section of cable.
If a seal is to be used on the cable terminal
Thread the seal on to the cable before stripping the insulation. If the seal is threaded on to a cable that has been stripped both the copper conductors in
the cable and the seal can be damaged.
-

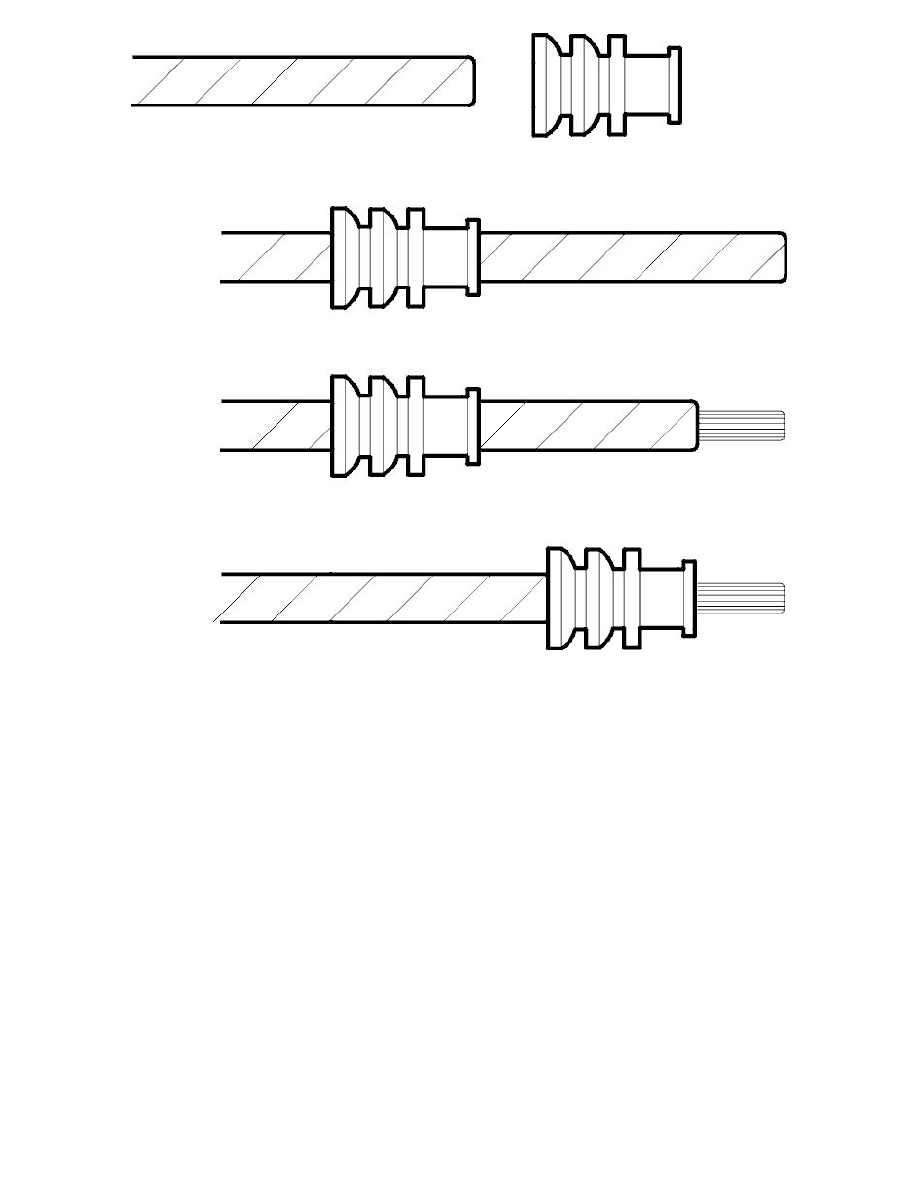

Push the seal about 5 cm down the cable with the narrow end of the seal pointing towards the cable end. See illustration.
Always use a seal of the correct size for the cable it is intended for.
Length of the stripped section of cable
