V50 L5-2.4L VIN 39 B5244S7 (2005)

Relays and Modules > Relays and Modules - HVAC > Control Module HVAC > Component Information > Diagrams > Diagram Information and Instructions > Page 1017

Page 18
background image

Note! There is one fiber for the input and one for the output signal. The system will not work if the are interchanged.

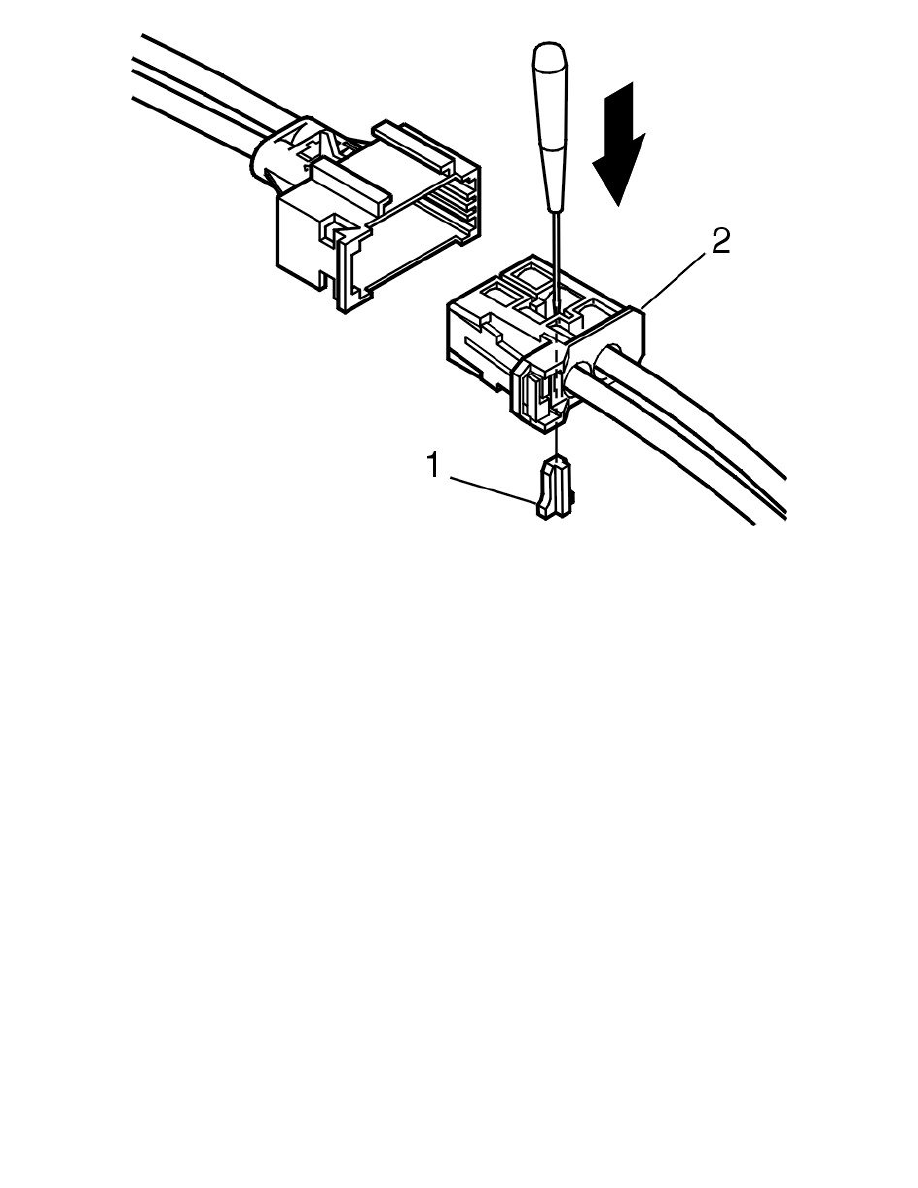

Press out the catch (1) using a screwdriver.
