Assembling the combined connector (2 optic and 4 electrical conductors)

Install the ferrule. See: Assembling the connector.

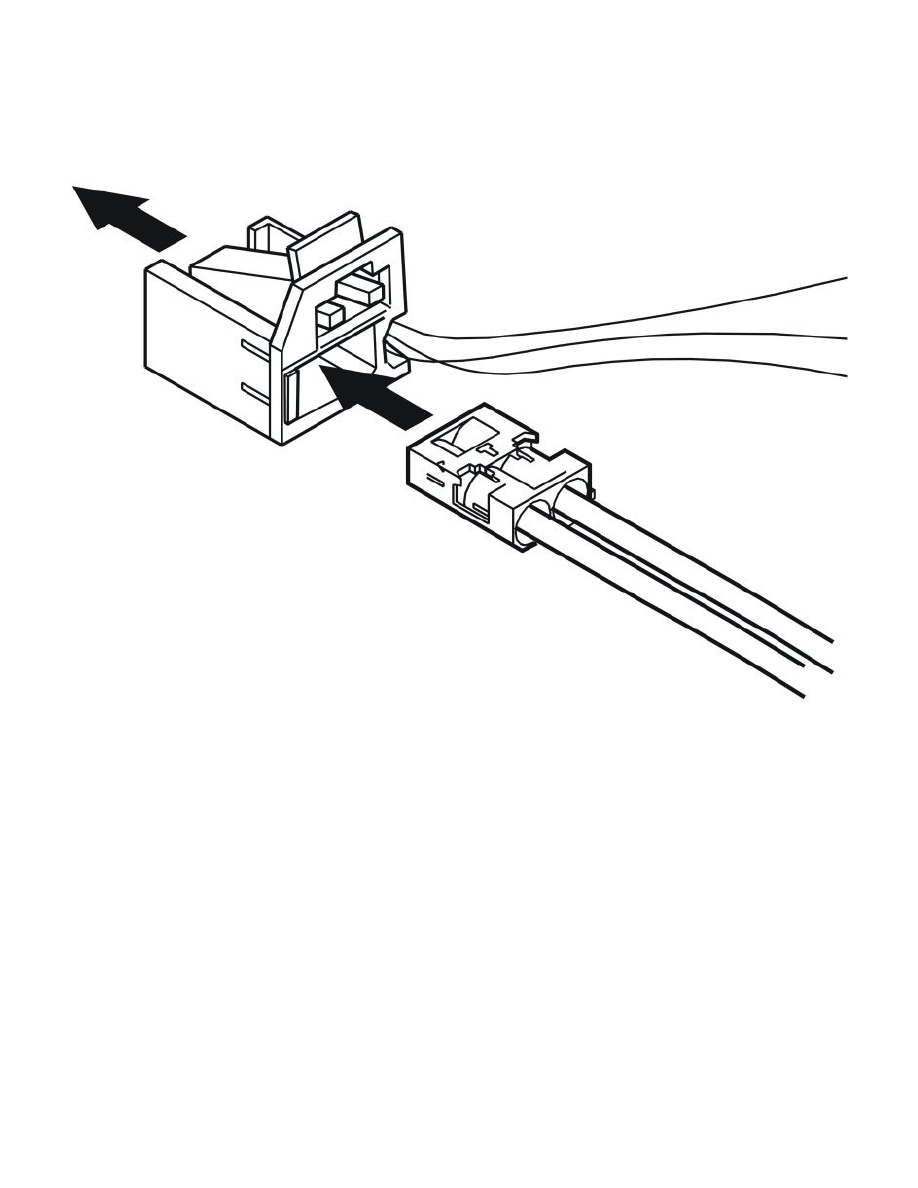

Press the inner section into place in the combined connector.

Finishing

Finishing work

Check the repair. See: Diagnostic Instructions - Fibre Optic Cable See: Cables/Diagnostic Instructions - Fibre Optic Cable.

Joining Cables

Joining cables
