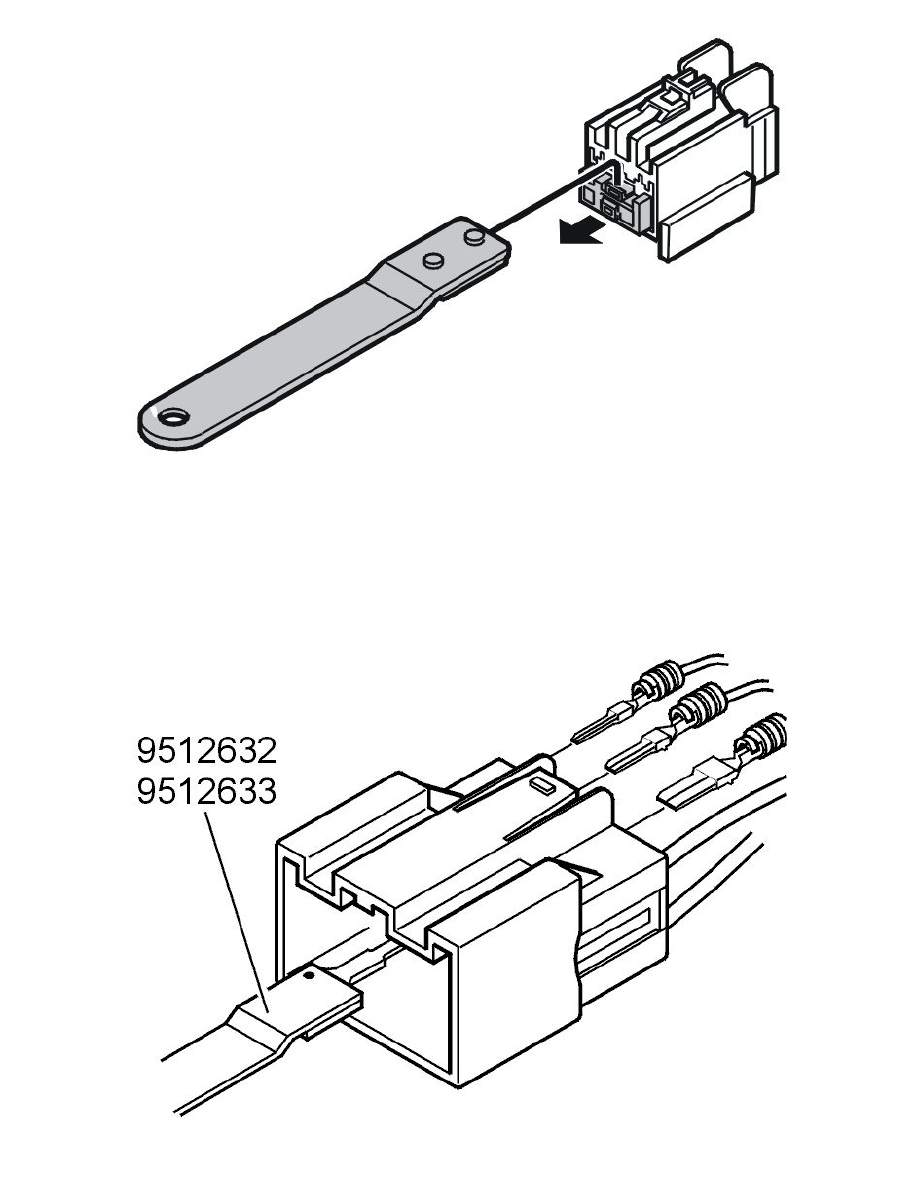

Release the catches and pull out the secondary lock. Use tool: 951 2853 Terminal removal tool  See: Tools and Equipment/951 2853 Terminal Removal
Tool  or an electrician's screwdriver, see the graphic.

Disassembling primary lock

Relays and Modules > Relays and Modules - HVAC > Control Module HVAC > Component Information > Diagrams > Diagram Information and Instructions > Page 1044
